Air conditioningResistor unit fascia duct bezel

RESISTOR UNIT FASCIA DUCT BEZEL

Service repair no - 82.20.26 Service repair no - 82.20.79

Remove Remove

NOTE: Access below evaporator unit.

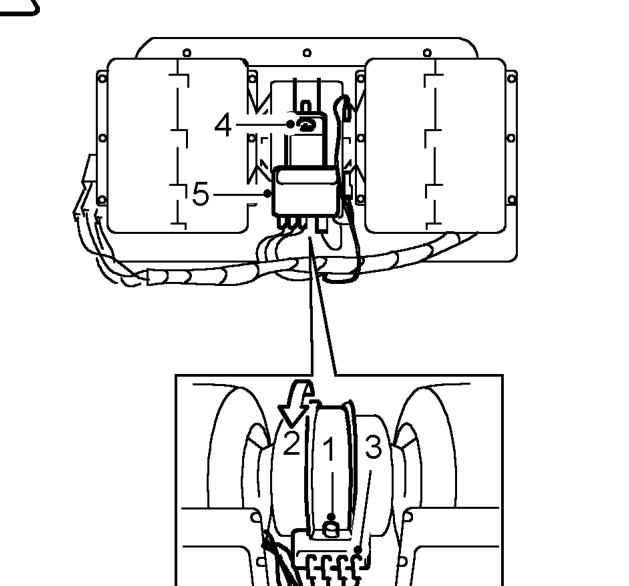

Note: access below evaporator unit. – Service repair no - 82.20.26 Service repair no - 82.20.79
  1. Loosen outer screw securing resistor unit to clamp.
  2. Rotate resistor on motor.
  3. Disconnect Lucars from resistor unit.

NOTE: Resistor wires: G, U, R and O

  1. Remove screws securing resistor to clamp.
  2. Remove resistor unit and clamp.

Refit

  1. Position clamp over motor and place resistor, terminals downward, onto motor.
  2. Fit screws and tighten inner screw only.
  3. Fit Lucars to resistor unit, in correct sequence.
  4. Rotate resistor to fitted position and tighten outer screw.
  5. Carry out system test. See Adjustment, System test

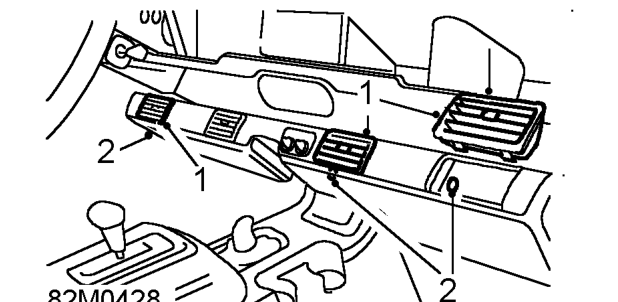

Note: resistor wires: g, u, r and o – Carry out system test. See Adjustment, System test
  1. Lever under each bottom corner and remove cold air vents from bezel.
  2. Remove screw securing underside of bezel to panel.
  3. Remove 3 screws securing inside of bezel to panel.

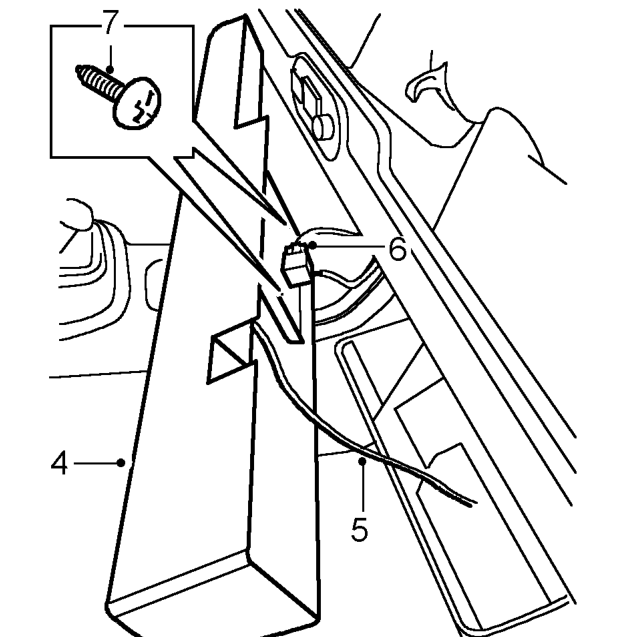

Note: resistor wires: g, u, r and o – Remove 3 screws securing inside of bezel to panel.
  1. Lift bezel away from evaporator casing.
  2. Withdraw capillary tube from evaporator fins.
  3. Disconnect multiplug from fan interlock relay.
  4. Remove 2 screws securing cover to rear of bezel.
