Automatic gearboxPump and main housing · page 3 of 4
Diagram

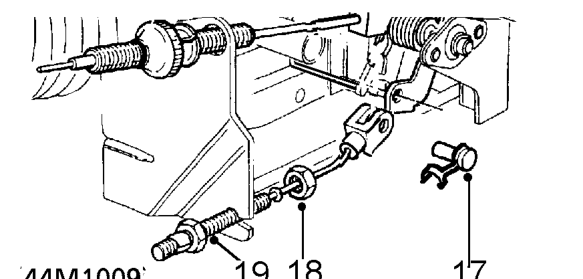

  1. Remove kick-down cable clevis pin.
  2. Release kick-down outer cable lock nut.
  3. Release kick-down outer cable from abutment
  4. Release kick-down outer cable from clip on rear

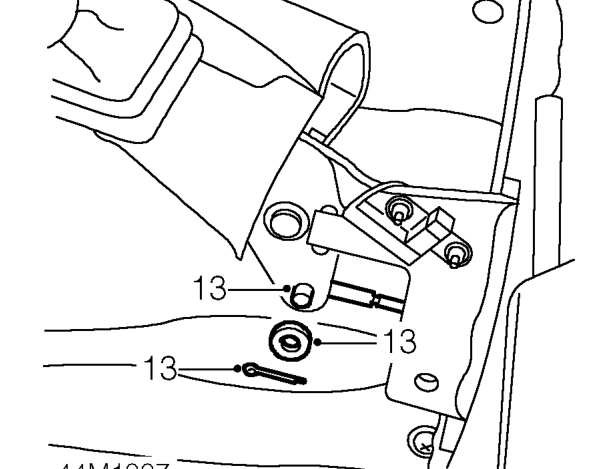

  5. Remove split pin and clevis pin securing hand brake cable to lever. Discard split pin.
Remove split pin and clevis pin securing hand brake cable to lever. Discard split pin.

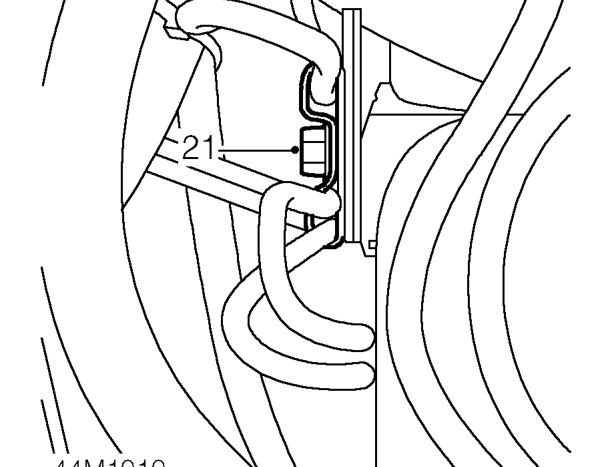

  1. Remove bolt securing 2 breather pipe ’P’ clips to
  2. Remove 6 bell housing to engine bolts.
  3. Raise vehicle.
  4. Remove exhaust front pipe.

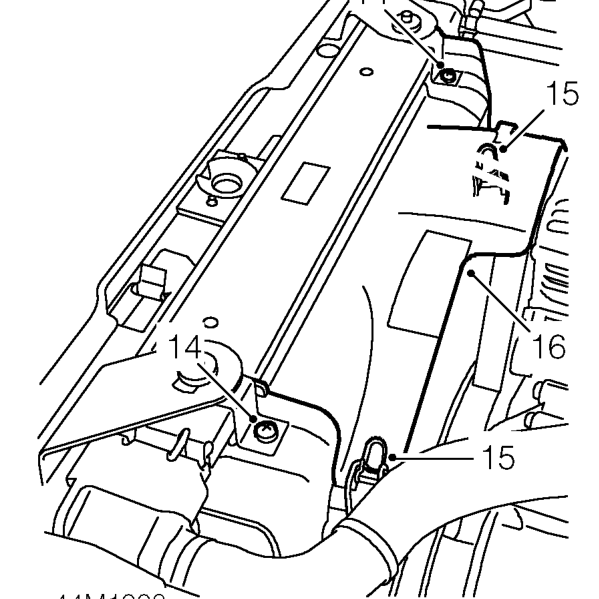

  5. Remove 2 screws securing fan cowl to upper retaining brackets.
  6. Release 2 clips securing upper fan cowl.
  7. Remove upper fan cowl.
Remove upper fan cowl.

bracket.

of LH cylinder head.

of LH cylinder head.

rear of RH cylinder head.

  • See EMISSION
  • CONTROL, Repair, front pipe/catalytic
  • converter
