Pump and main housing (page 2 of 4)

17. Refit torque converter into housing using torque GEARBOX AND TRANSFER BOX ASSEMBLY converter handles LRT-44-010. Check that dimension from converter fixing bolt boss to Service repair no - 44.20.04/99 converter housing face is 50 mm (1.968 in) to comfirm that converter is properly seated in Remove housing.
18. Refit gearbox/transfer box assembly. See Gearbox and transfer box assembly; Refit
10. Remove 2 cable ties securing gearbox and

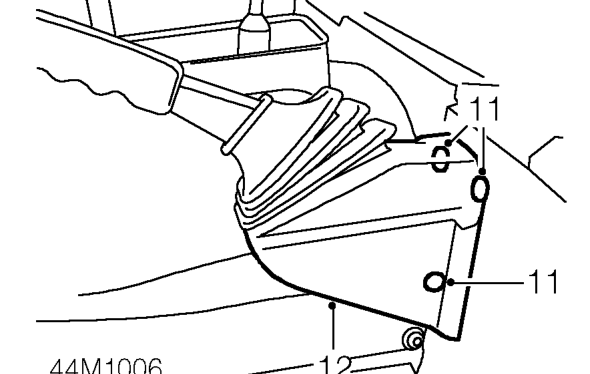

11. Remove 3 trim studs securing hand brake gaiter.
12. Release hand brake gaiter to access cable
1. Position vehicle on ’4-post’ ramp.
2. Select LOW range gear and leave vehicle in neutral.
3. Disconnect battery negative lead.
4. Drain gearbox oil. See MAINTENANCE , under vehicle maintenance
5. Drain transfer gearbox oil. See MAINTENANCE , under vehicle maintenance
6. Remove centre console. See CHASSIS AND BODY, Repair, centre console

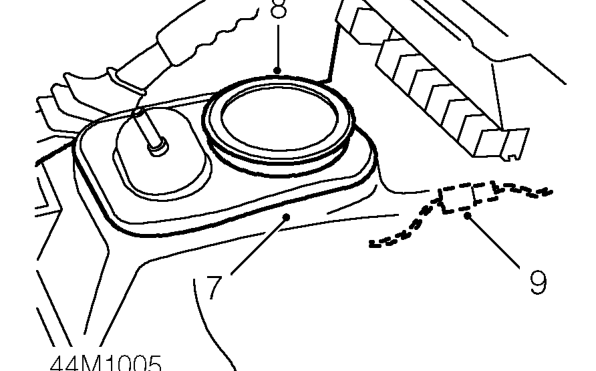

7. Remove carpet from transmission tunnel.
8. Remove hi-low selector housing cover from tunnel.
9. Working through hi-low gear lever aperture, disconnect inhibitor/reverse light switch multiplug.

transfer box breather pipes to harness.

linkage.
