Pump and main housing (page 4 of 4)

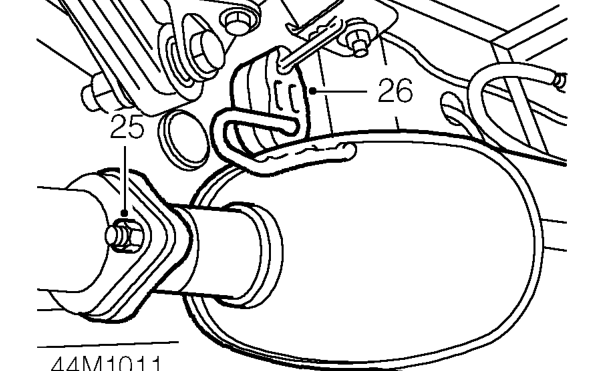

25. Remove 2 nuts securing intermediate pipe to tail pipe.
26. Release intermediate pipe from tail pipe and remove from mounting.

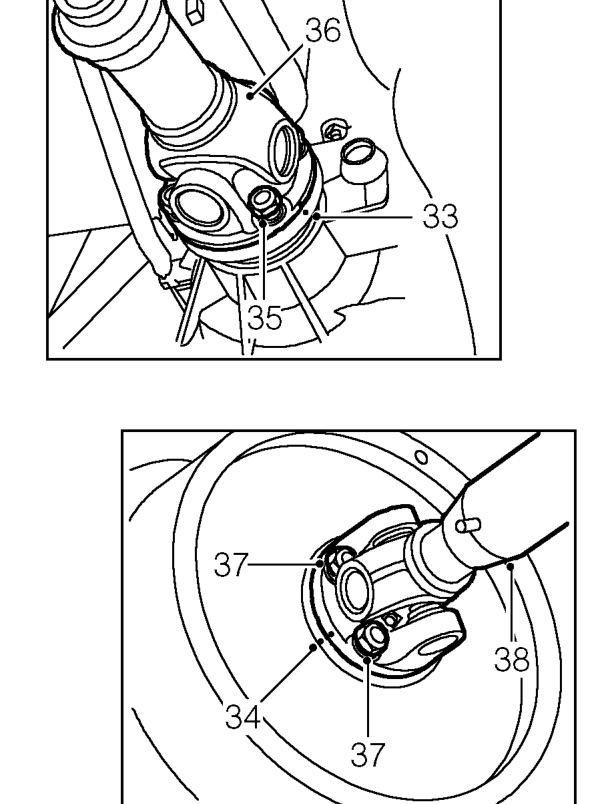

33. Using a centre punch, mark relationship between
34. Using a centre punch, mark relationship between
35. Remove 4 nuts securing front propeller shaft to

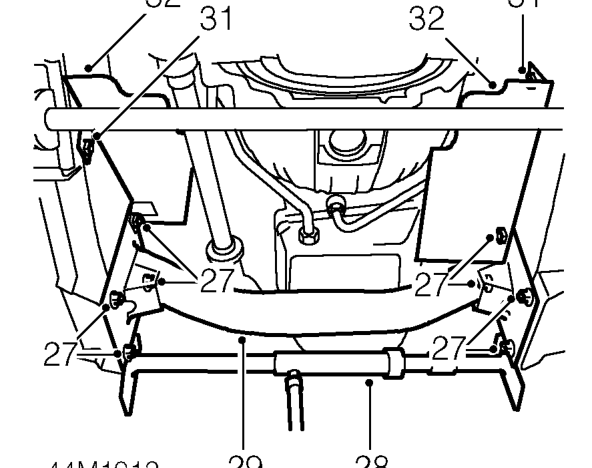

27. Remove 8 bolts securing chassis crossmember.
28. With assistance, and using a body jack between chassis longitudinals, jack chassis sufficiently to enable removal of crossmember. 36. Release propeller shaft from transfer box flange
29. Remove crossmember.
30. Remove body jack. 37. Remove 4 nuts securing rear propeller shaft to
31. Remove bolt securing LH and RH catalyst heat shields to chassis.
32. Remove catalyst heat shields.
38. Release propeller shaft from brake drum bolts
39. Remove 7 bolts securing bell housing closing
40. Remove 3 bolts securing bell housing access

front propeller shaft to transfer box flanges.

rear propeller shaft to brake drum flanges.

transfer box flange.

NOTE: Rotate propeller shaft to gain access to all fixing.

bolts and tie aside.

brake drum flange.

NOTE: Rotate propeller shaft to gain access to all fixing.

and tie aside.

plate and remove plate.

plate and remove plate.
