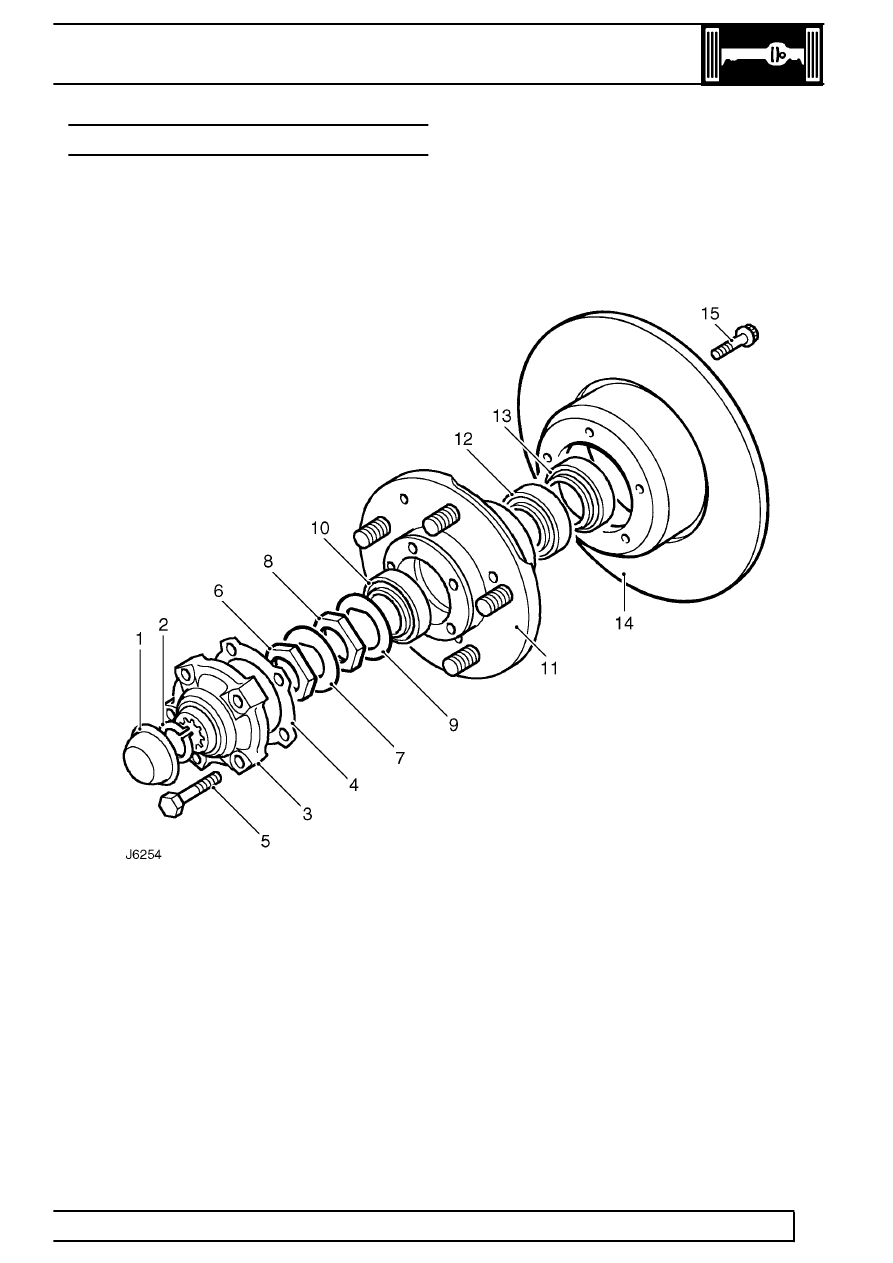

300Tdi Defender Rear Axle and Final Drive Hub Components - Page 337
51
REAR AXLE AND FINAL DRIVE
14
OVERHAUL
6. Drift out inner and outer bearing tracks.
7. Clean hub and drift in inner and outer bearing
tracks.
8. Pack hub inner bearing with recommended
grease and fit to hub.
9. With lip side leading, fit new seal to hub using
special tool LRT-54-003 (LST 137) seal replacer
and drift 18G 134. Drive in seal flush with rear
face of hub. Apply grease between seal lips.
10. Fit brake disc to hub, lining up to marks made
during dismantling. apllying Loctite 270, fit
retaining bolts. Tighten to
73 Nm (54 lbf/ft).
11. Grease and fit outer bearing to hub.
12. Fit hub assembly
See Repair, Rear hub
assembly .
