TD5 Defender
MANIFOLD AND EXHAUST SYSTEM
1
REPAIR
PIPE - EXHAUST - FRONT
Service repair no - 30.10.09

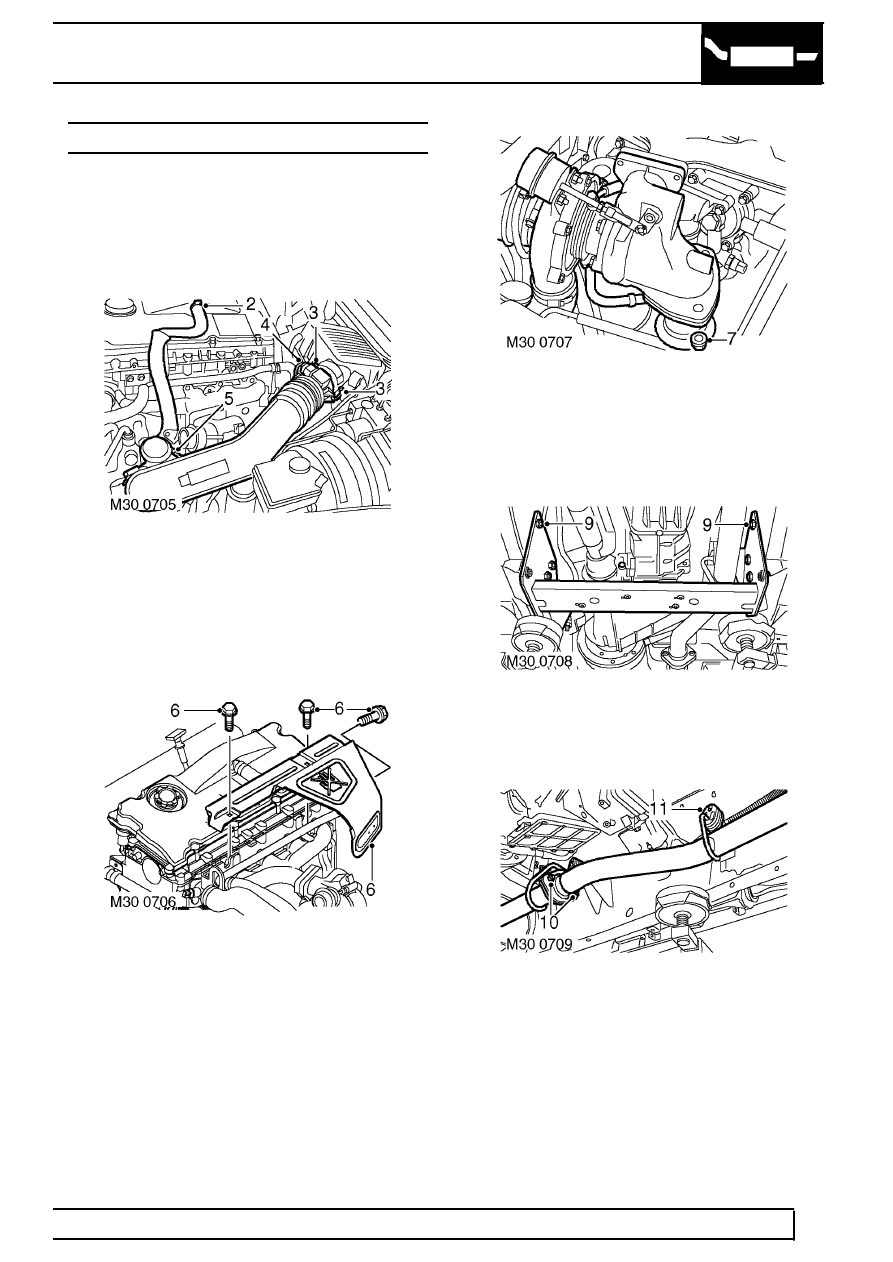

Remove
1. Remove engine acoustic cover. See ENGINE ,
Repair.
2. Release clip and disconnect breather hose from
camshaft cover.
3. Release clips and disconnect air flow meter from
air filter.
4. Disconnect multiplug from air flow meter.
5. Loosen clip screw and remove air inlet hose
from turbocharger.
6. Remove 3 bolts and remove exhaust manifold
heat shield.
7. Remove 3 nuts, release front pipe from
turbocharger and discard gasket.
8. Remove underbelly panel. See CHASSIS AND
BODY, Repair.
9. Remove 8 nuts and bolts and remove chassis
cross member.
10. Remove 2 nuts, release front pipe from
intermediate silencer.
11. Release front pipe from mounting rubber and
remove pipe.
