Discovery II
AIR CONDITIONING
82-32
REPAIRS

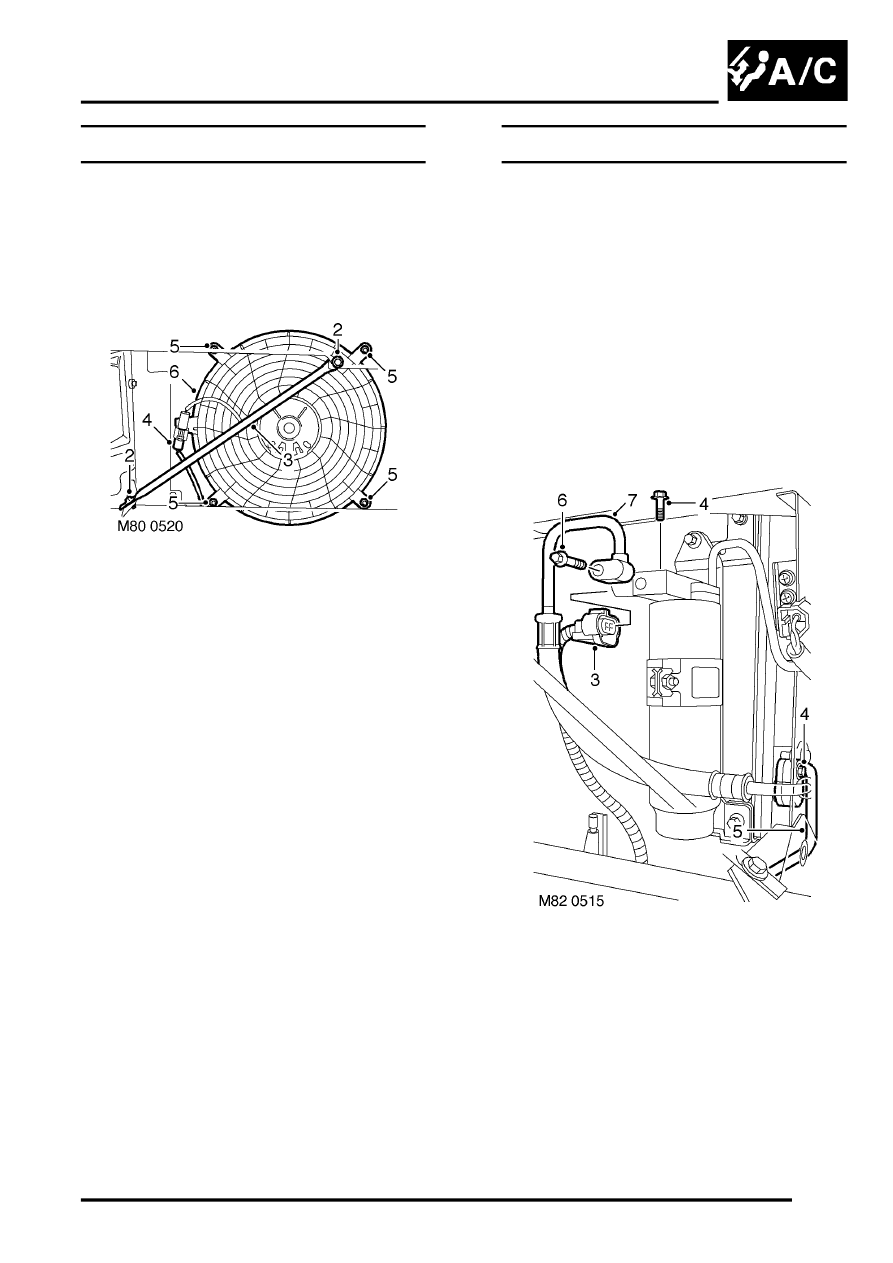

8. Remove 3 remaining bolts securing cooling fan
support rails to condenser.
9. Remove condenser.
10. Remove bolt securing adaptor block to receiver
drier.
11. Remove adaptor block from receiver drier and
discard 'O' ring.
CAUTION: Always fit plugs to open
connections to prevent contamination.
12. Remove bolt securing condenser pipe to
receiver drier.
13. Remove clamp bolt receiver drier to bracket
and remove drier from bracket.
14. Remove and discard 'O' ring from condenser
pipe.
CAUTION: Always fit plugs to open
connections to prevent contamination.
15. Remove 2 remaining bolts securing receiver
drier brackets and condenser LH mounting
bracket to condenser.
16. Remove mounting bracket assembly.
17. Remove remaining bolt securing condenser RH
mounting and remove mounting.
18. Remove sealing strip from outer upper seam of
condenser.
19. Remove captive nut plates from condenser.
