Discovery II
BRAKES
DESCRIPTION AND OPERATION
70-13
ABS modulator

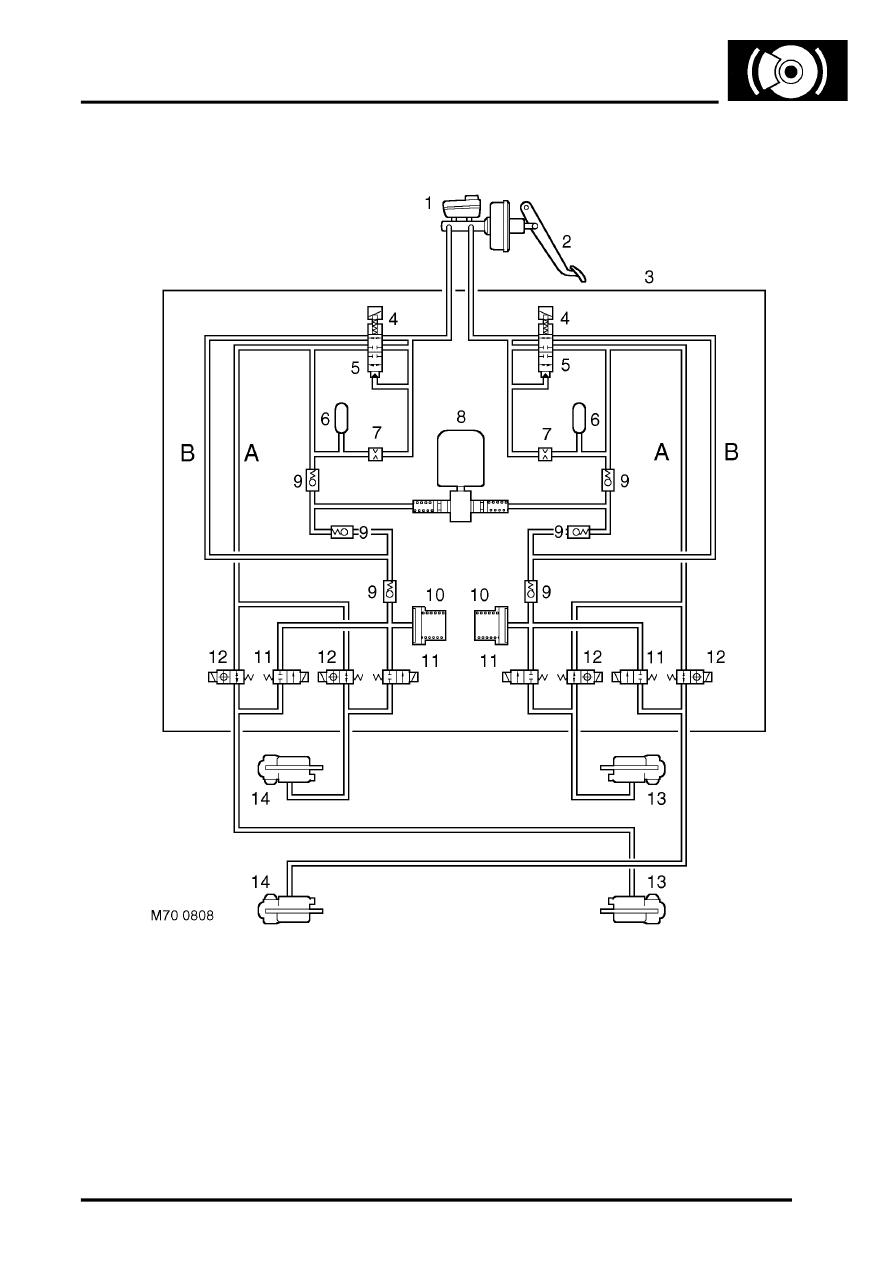

ABS modulator schematic
1 Master cylinder/brake servo assembly
2 Brake pedal
3 ABS modulator
4 Shuttle valve switch
5 Shuttle valve
6 Damper chamber
7 Restrictor
8 Return pump
9 Non return valve
10 Expansion chamber
11 Outlet solenoid valve
12 Inlet solenoid valve
13 Rear brake
14 Front brake
