Discovery II
REAR SUSPENSION
64-32
REPAIRS
7. Remove front bolt from radius arm and remove
radius arm from axle.

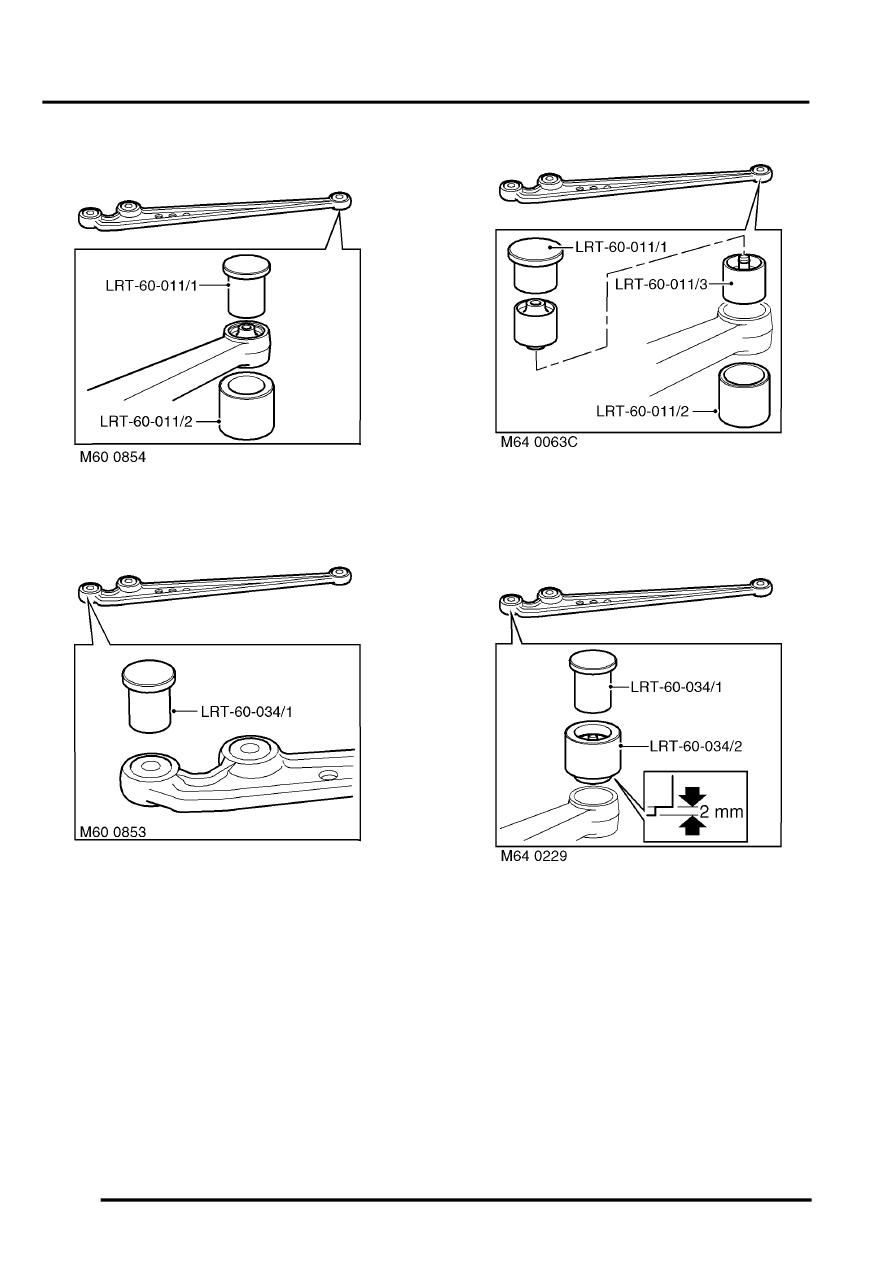

8. Using LRT-60-011/1 and LRT-60-011/2 press
out bush from rear end of radius arm.
9. Using LRT-60-034/1 press out bushes from
axle end of radius arm.
Refit
1. Clean and lubricate bush and radius arm
mating faces.
2. Using LRT-60-011/1, LRT-60-011/2 and LRT-
60-011/3 press bush into rear end of radius
arm.
3. Using LRT-60-034/1 press front radius arm
bush into LRT-60-034/2, until aproximately
2mm of bush is protruding from opposite end
of tool.
