Discovery II
REAR SUSPENSION
REPAIRS
64-33

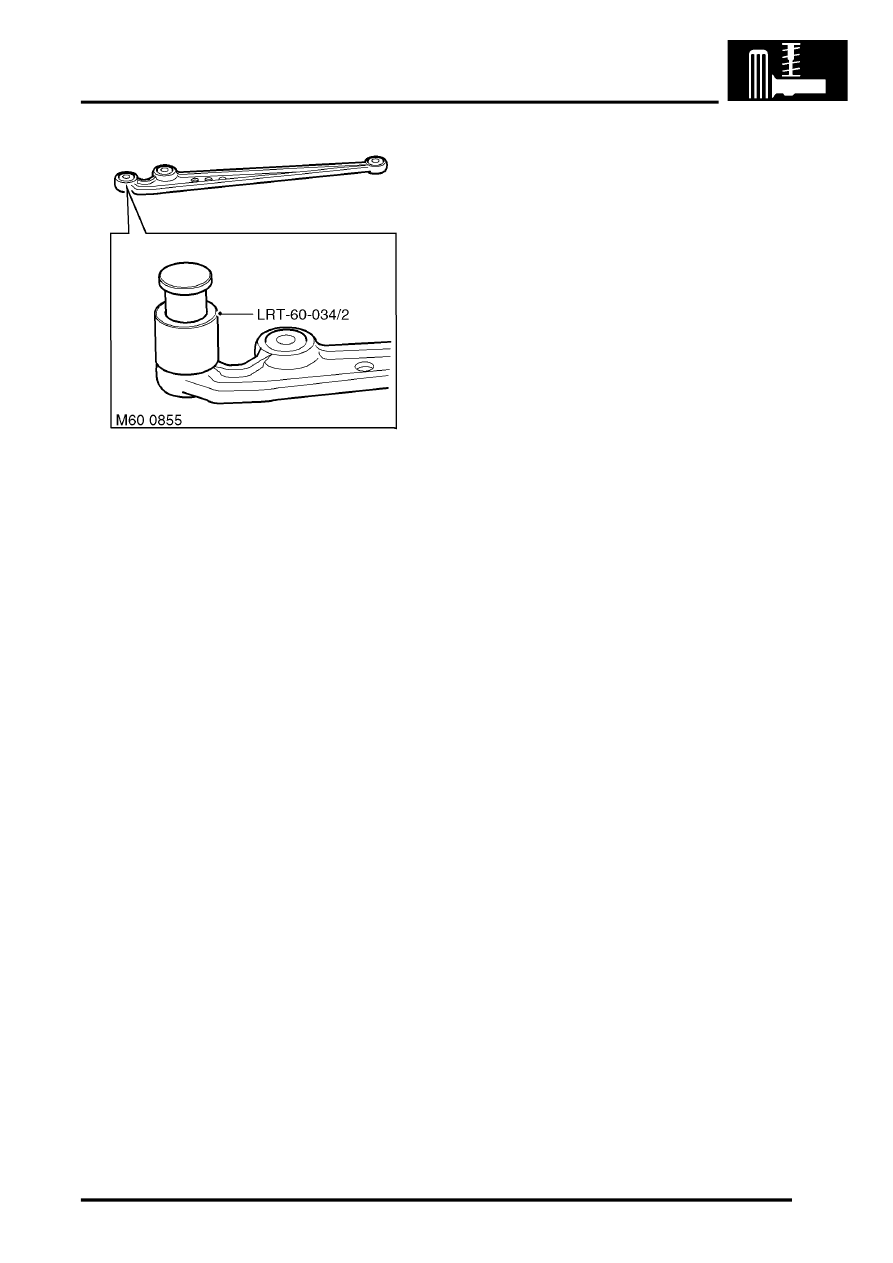

4. Position LRT-60-034/2 over radius arm and
locate bush to aperture.
5. With assistance, press bush into aperture.
6. Repeat above operation for remaining bush.
7. Position radius arm to vehicle and fit securing
nuts and bolts, do not tighten at this stage.
CAUTION: Nuts and bolts must be tightened
with the weight of the vehicle on the
suspension.
8. Models with SLS: Position height sensor link
to radius arm and tighten nut and bolt to 25 Nm
(18 lbf.ft).
9. Fit road wheel and tighten nuts to 140 Nm (103
lbf.ft).
10. Remove stands and lower vehicle.
11. Tighten radius arm nuts and bolts to 230 Nm
(170 lbf.ft).
