Control unitsControl Unit Locations
CONTROL UNITSDESCRIPTION AND OPERATION

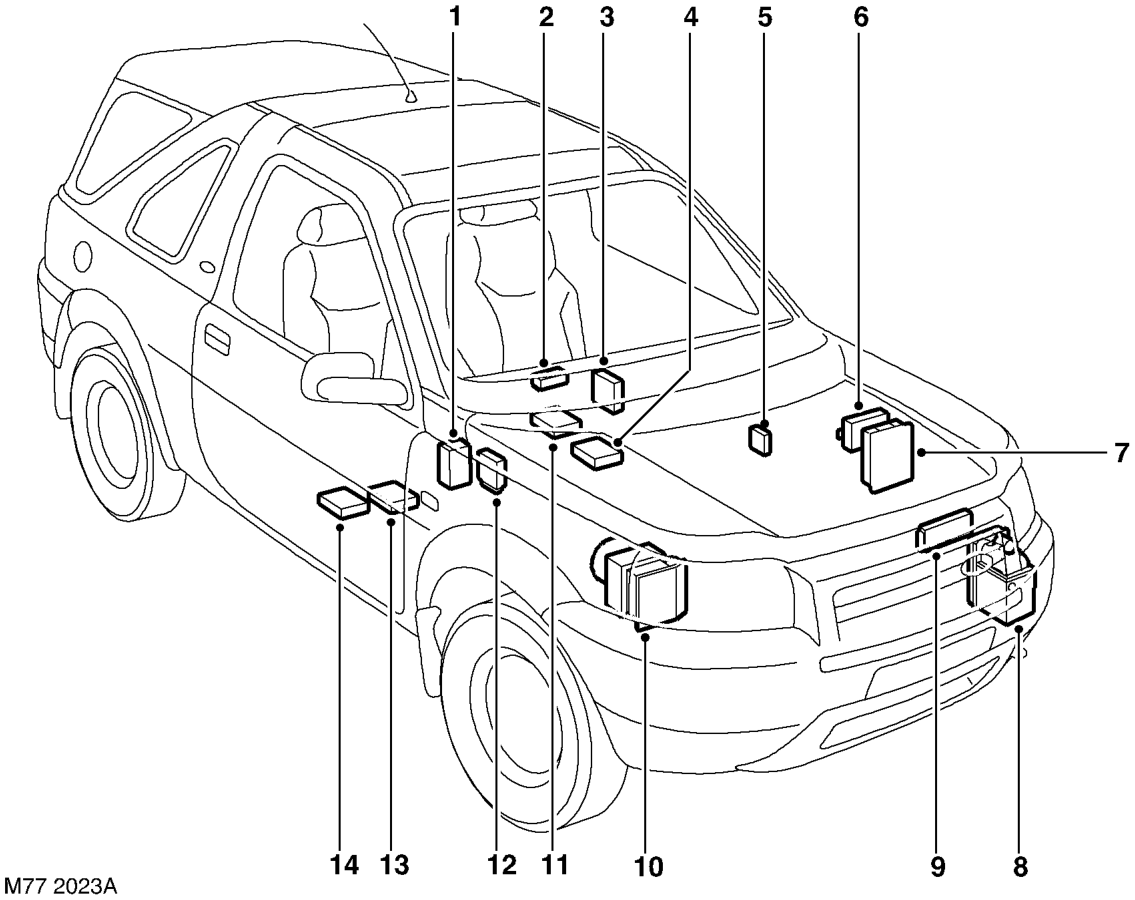

Control Unit Locations
RHD shown, LHD similar
1 CCU 2 RF receiver 3 Immobilisation ECU 4 SRS DCU 5 EAT ECU (automatic gearbox models only) 6 Folding door mirror ECU, from 2002 MY (where fitted) 7 ECM
8 Fuel burning heater ECU (some Td4 models) 9 Cooling fan ECU (all except K1.8 non A/C) 10 ABS modulator 11 Folding door mirror ECU, up to 2002 MY (where fitted) 12 Window lift ECU 13 Cruise control interface ECU (where fitted) 14 Cruise control ECU (where fitted)
