Windscreen Wiper Components (Wipers and washers)
- Make
- Land Rover
- Model
- Freelander System Description and Operation (UK)
- Section
- Description and operation › Windscreen Wiper Components
Wipers and washersWindscreen Wiper Components
WIPERS AND WASHERSDESCRIPTION AND OPERATION

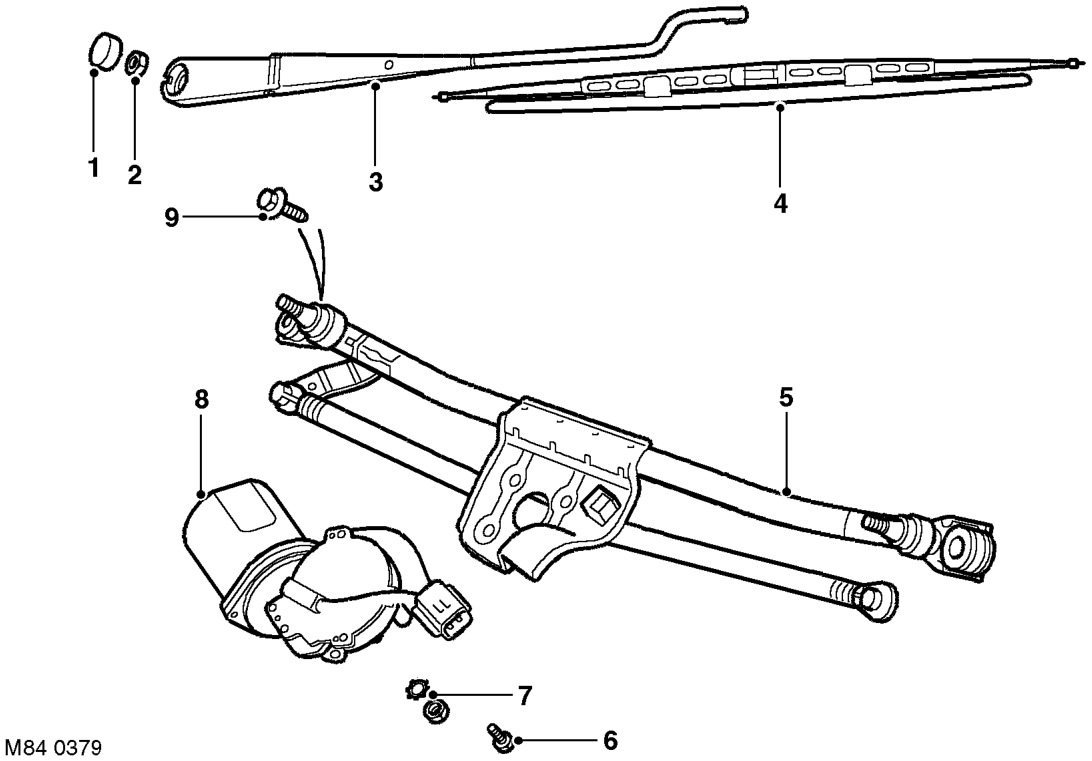

Windscreen Wiper Components
RHD shown, LHD mirror image
1 Cap, 2 off 2 Nut, 2 off 3 Wiper arm, 2 off 4 Wiper blade, 2 off 5 Wiper link assembly
6 Motor mounting bolt, 3 off 7 Nut and washer 8 Wiper motor 9 Mounting bolt, 3 off
