SecurityLocking and Alarm System Component Layout
SECURITYDESCRIPTION AND OPERATION

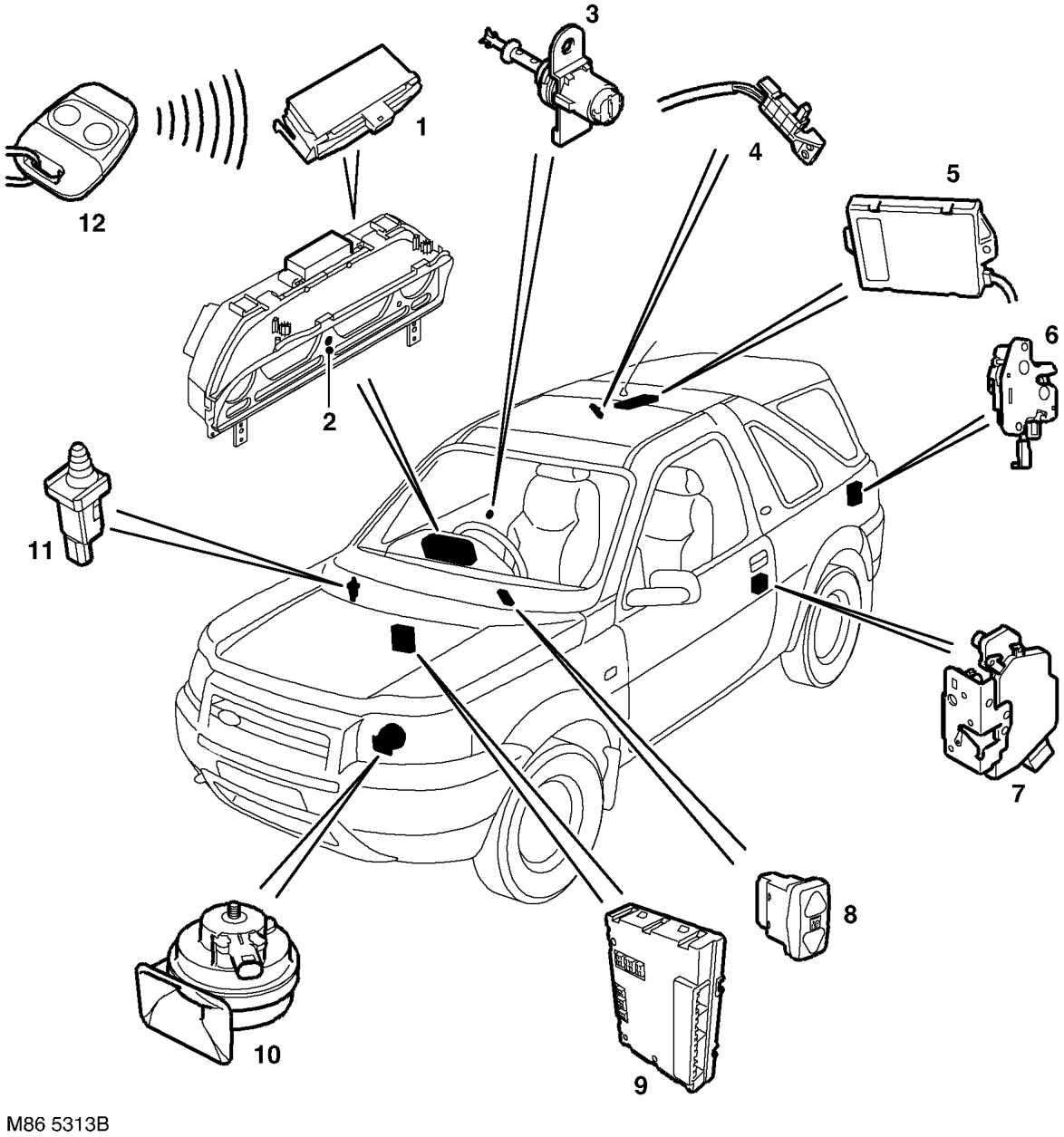

Locking and Alarm System Component Layout
1 RF receiver 2 Alarm LED 3 Driver's door key barrel switch 4 Roof switch (3 door only) 5 Volumetric sensor 6 Tail door latch
7 Door latch 8 CDL switch 9 CCU 10 Horn 11 Bonnet switch 12 Remote handset
