Clutch Components – K1.8 Engines

Make

Land Rover

Model

Freelander System Description and Operation (UK)

Section

Description and operation › Clutch Components – K1.8 Engines

ClutchClutch Components – K1.8 Engines

_{CLUTCHDESCRIPTION AND OPERATION}

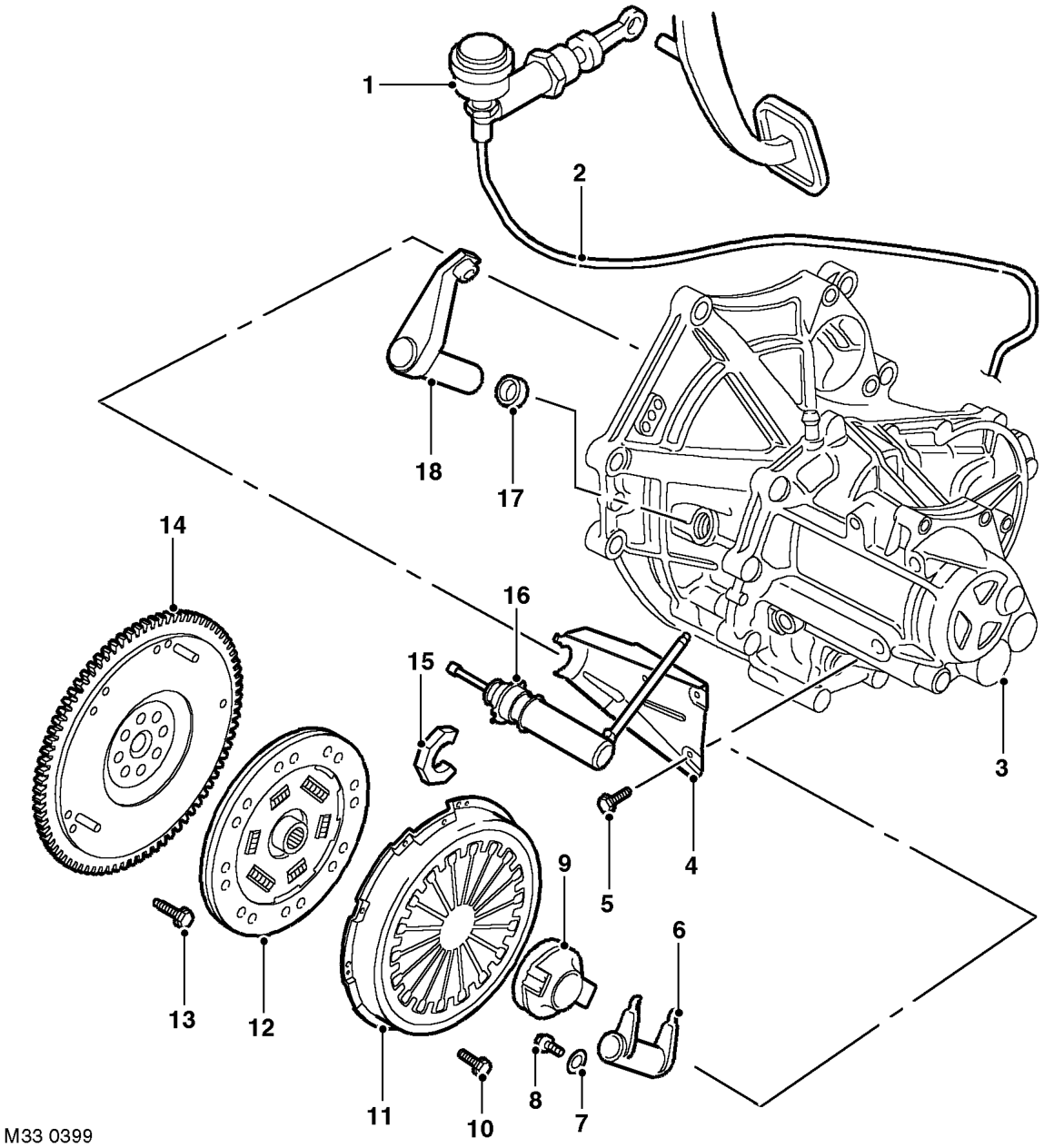

Clutch Components – K1.8 Engines

1 Master cylinder 2 Tube 3 Gearbox (PG1) 4 Bracket 5 Bolt (3 off) 6 Release fork 7 Spring washer 8 Bolt 9 Release bearing

10 Bolt (6 off) 11 Clutch cover assembly 12 Clutch driven plate 13 Bolt (6 off) 14 Flywheel 15 Clip 16 Slave cylinder 17 Release shaft oil seal 18 Release lever

20 Transmission
