Front suspensionFront Suspension Component Location
FRONT SUSPENSIONDESCRIPTION AND OPERATION

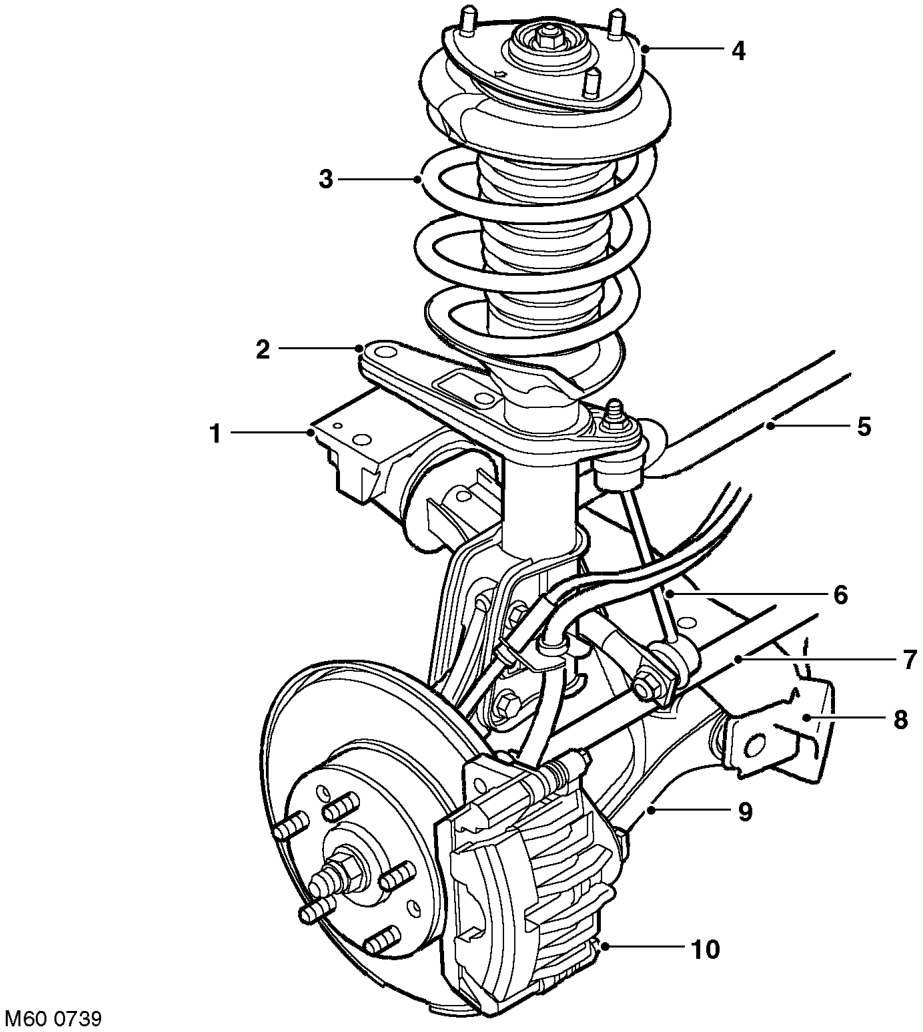

Front Suspension Component Location
RH Front suspension shown, LH is mirror image
1 Bush and housing assembly 2 Damper 3 Road spring 4 Top mount 5 Anti-roll bar
6 Anti-roll bar link 7 Drive shaft 8 Front subframe 9 Lower arm 10 Brake caliper and hub assembly
