BrakesBrake System Layout (K1.8 and Td4)

_{BRAKESDESCRIPTION AND OPERATION}

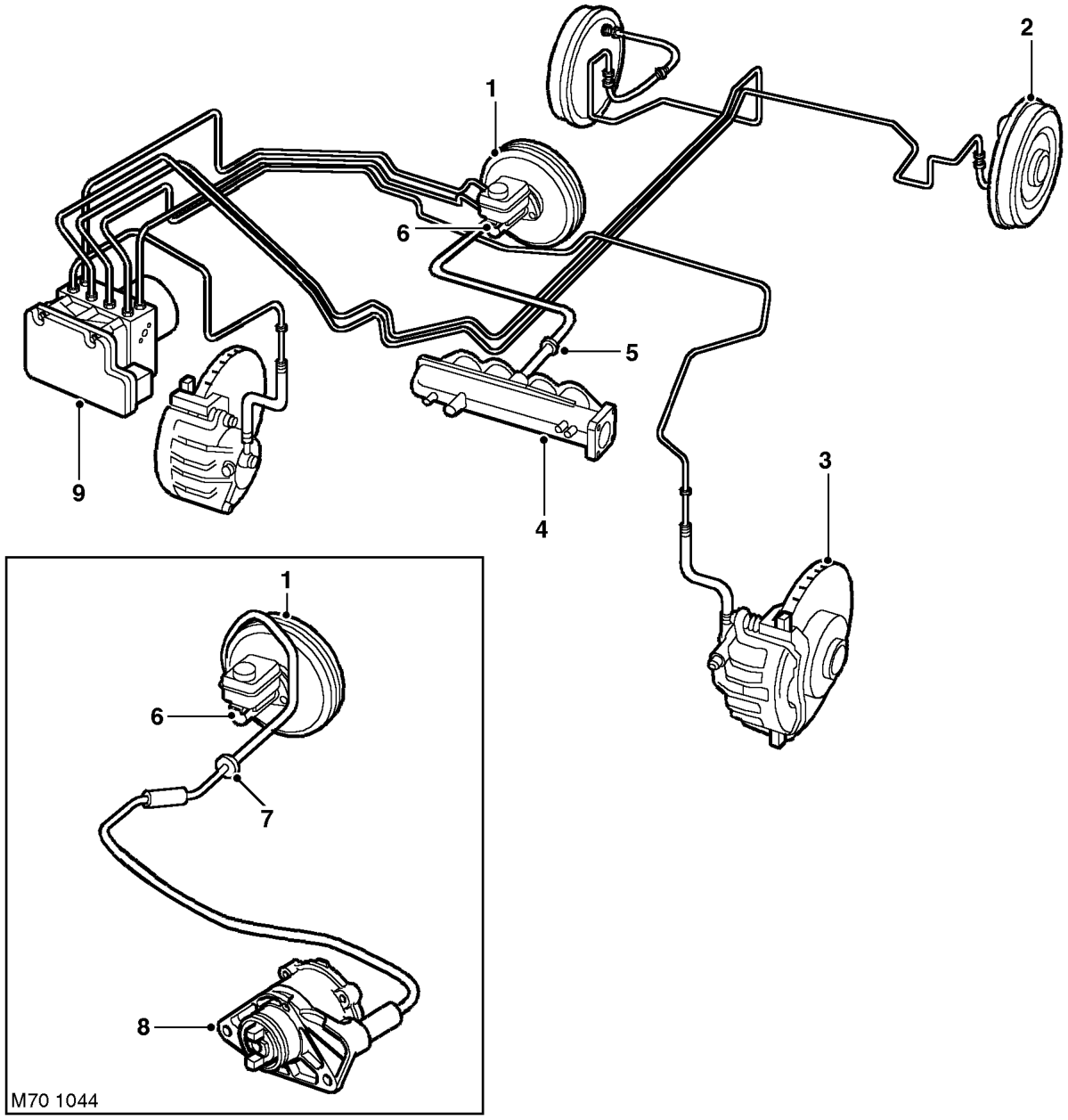

Brake System Layout (K1.8 and Td4)

RHD shown, LHD similar

1 Brake servo assembly 2 Rear brake 3 Front brake 4 Engine inlet manifold (petrol models) 5 Vacuum check valve

6 Master cylinder assembly 7 Vacuum check valve (diesel) 8 Vacuum pump (diesel models) 9 ABS modulator/ECU

29 Brakes
