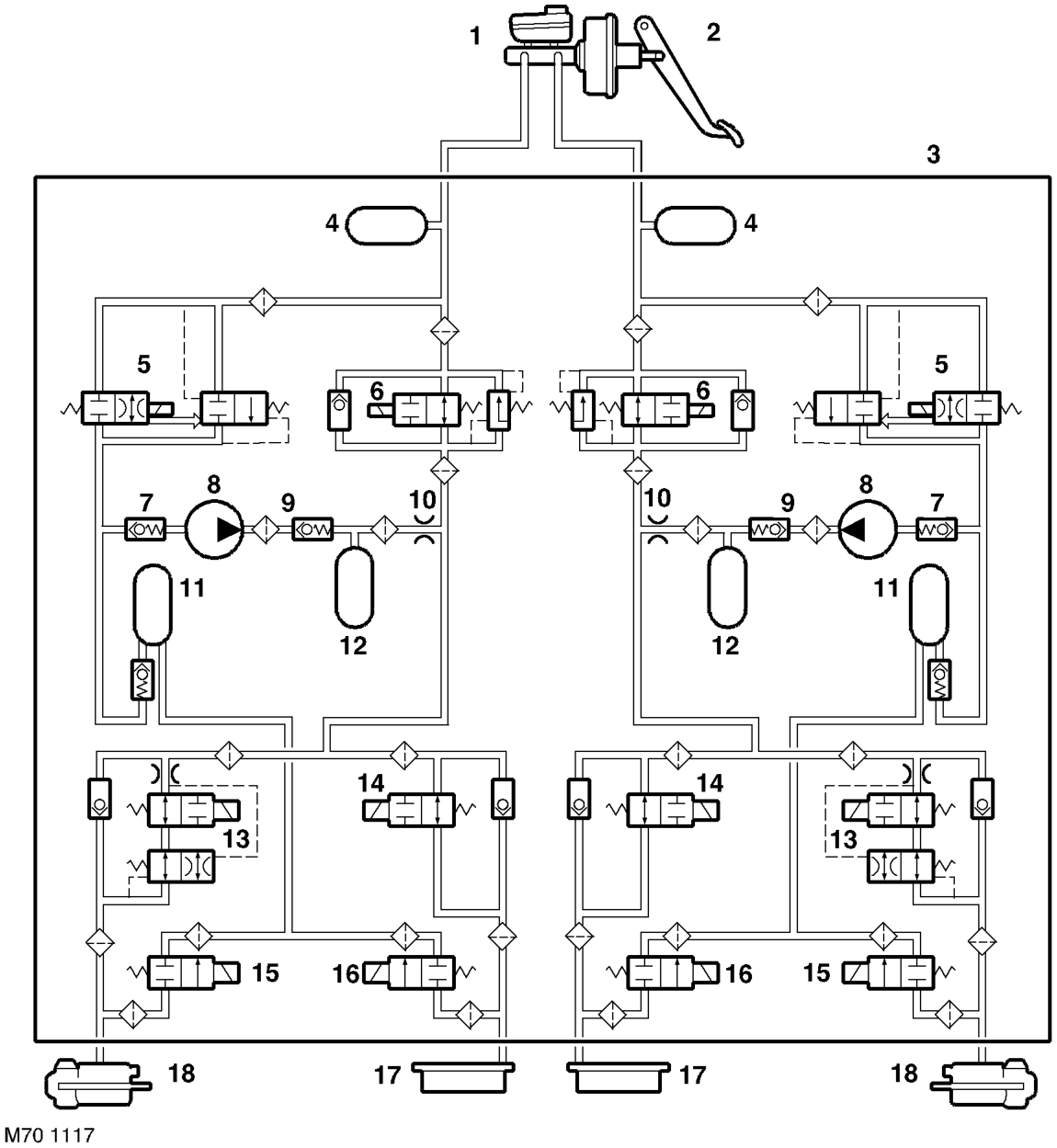

ABS Modulator Schematic (From 2002 MY)

1 Master cylinder 2 Brake pedal 3 ABS modulator 4 Pulsation damper 5 Shuttle valve 6 Separation valve (with integrated pressure relief valve) 7 Check valve 8 Return pump 9 Check valve

10 Restrictor 11 Low pressure accumulator 12 Damper chamber 13 Front brake inlet valve 14 Rear brake inlet valve 15 Front brake outlet valve 16 Rear brake outlet valve 17 Rear brake 18 Front brake
