Restraint systemsSRS Component Layout
RESTRAINT SYSTEMSDESCRIPTION AND OPERATION

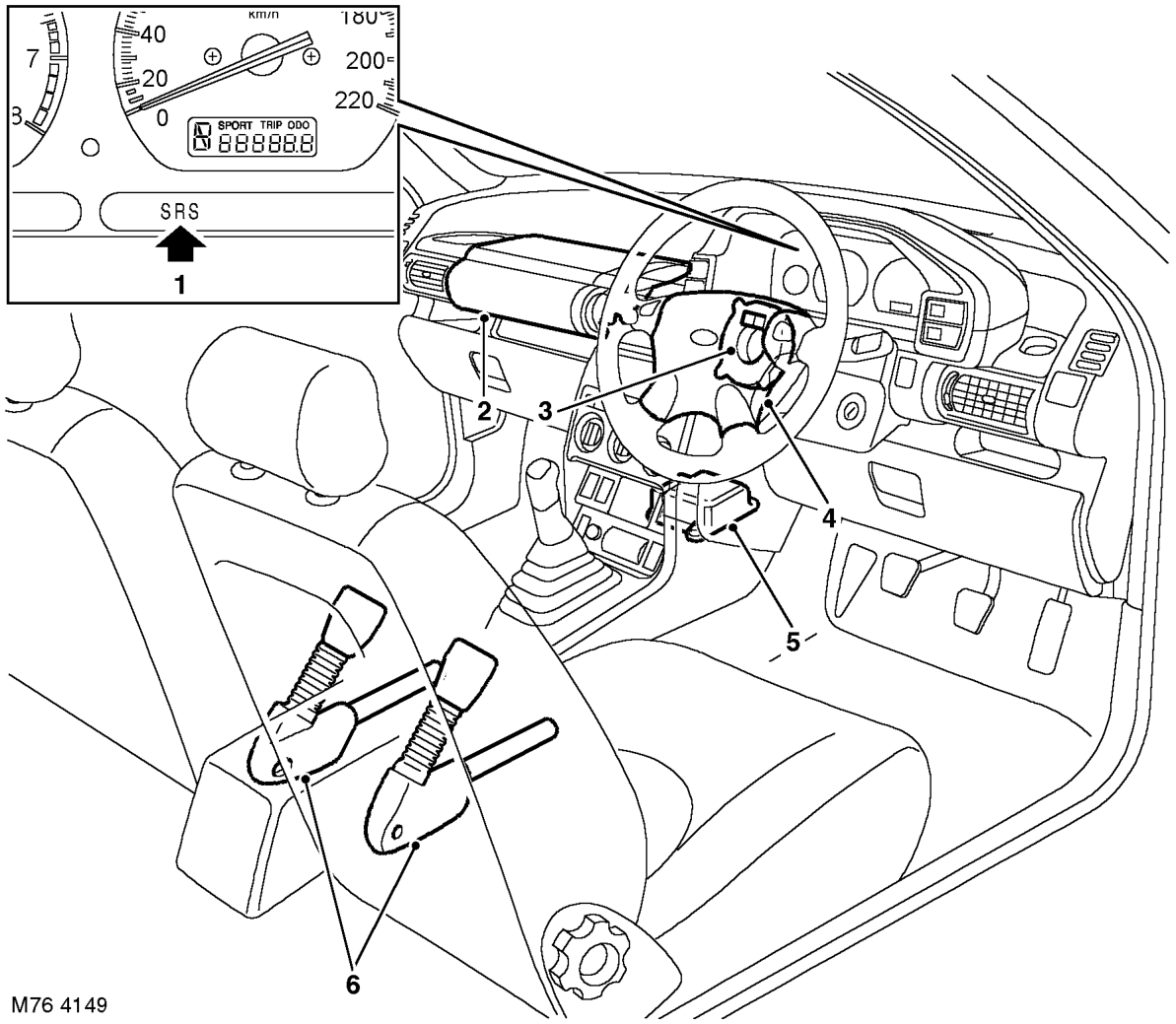

SRS Component Layout
1 SRS warning lamp 2 Passenger's airbag module 3 Rotary coupler
4 Driver's airbag module 5 Airbag DCU (pre 2002 MY version shown) 6 Seat belt pretensioners
