Restraint systemsSRS Control Diagram

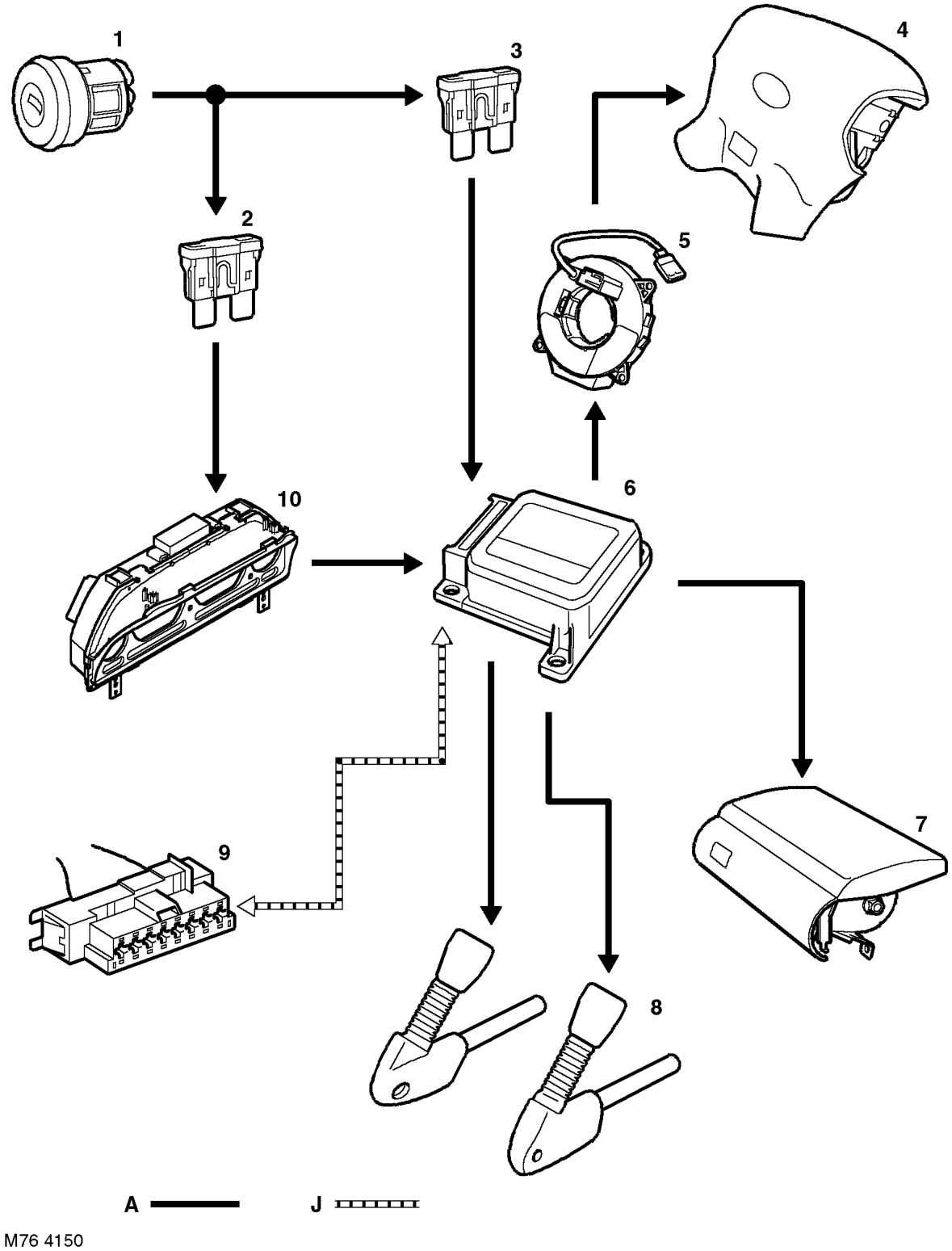

SRS Control Diagram
A = Hardwired connections; J = Diagnostic ISO 9141 K line bus
1 Ignition switch 2 Fuse 8, passenger compartment fusebox 3 Fuse 36, passenger compartment fusebox 4 Driver's airbag module 5 Rotary coupler
6 Airbag DCU (pre 2002 MY version shown) 7 Passenger's airbag module 8 Seat belt pretensioners 9 Diagnostic socket 10 Instrument pack
