Fuel delivery system - Td4Fuel Delivery System Component Layout
FUEL DELIVERY SYSTEM - Td4DESCRIPTION AND OPERATION

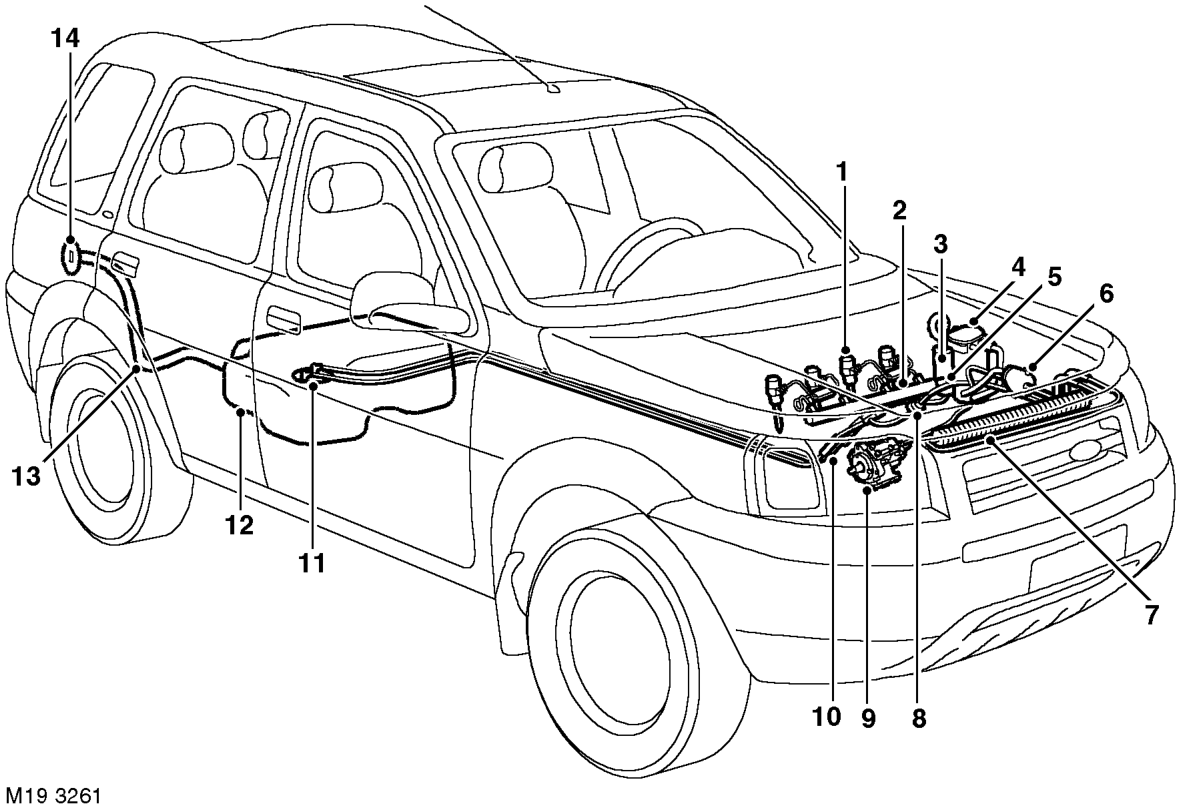

Fuel Delivery System Component Layout
1 Injector (4 off) 2 Fuel rail 3 Secondary Low Pressure (LP) fuel pump 4 Fuel filter 5 Pressure sensor 6 Bi-metallic valve 7 Fuel cooler
8 Pressure relief valve 9 High Pressure (HP) fuel injector pump 10 Five way valve 11 Primary LP fuel pump 12 Fuel tank 13 Filler tube 14 Filler cap
