Fuel delivery system - Td4Description
Description
General
The major components of the fuel delivery system comprise a fuel tank, a HP fuel injection pump, a primary LP fuel pump, a secondary LP fuel pump, a fuel rail and four injectors, a fuel filter and fuel cooler. The low pressure (LP) fuel pumps pass fuel from the tank to the injection pump which delivers fuel at high pressure to the fuel rail and equally to each of the injectors.
Fuel Tank

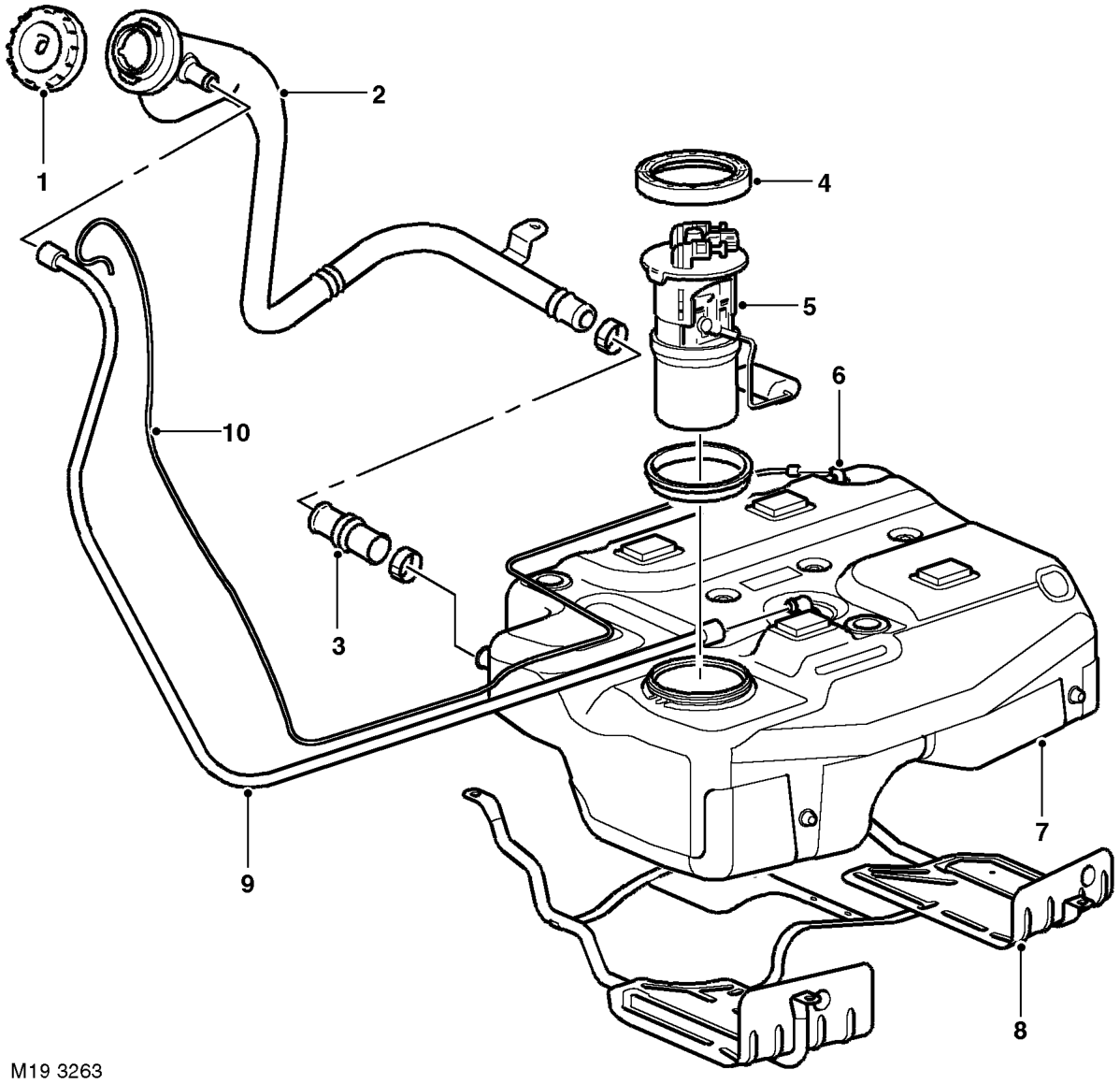

1 Filler cap 2 Filler tube 3 Flexible tube 4 Locking ring 5 Primary LP fuel pump and fuel gauge potentiometer
6 Roll over valve 7 Fuel tank 8 Cradle 9 Vent pipe 10 Atmospheric vent
