Fuel Delivery System Schematic Diagram (Fuel delivery system - Td4)
- Make
- Land Rover
- Model
- Freelander System Description and Operation (UK)
- Section
- Description and operation › Fuel Delivery System Schematic Diagram
Fuel delivery system - Td4Fuel Delivery System Schematic Diagram

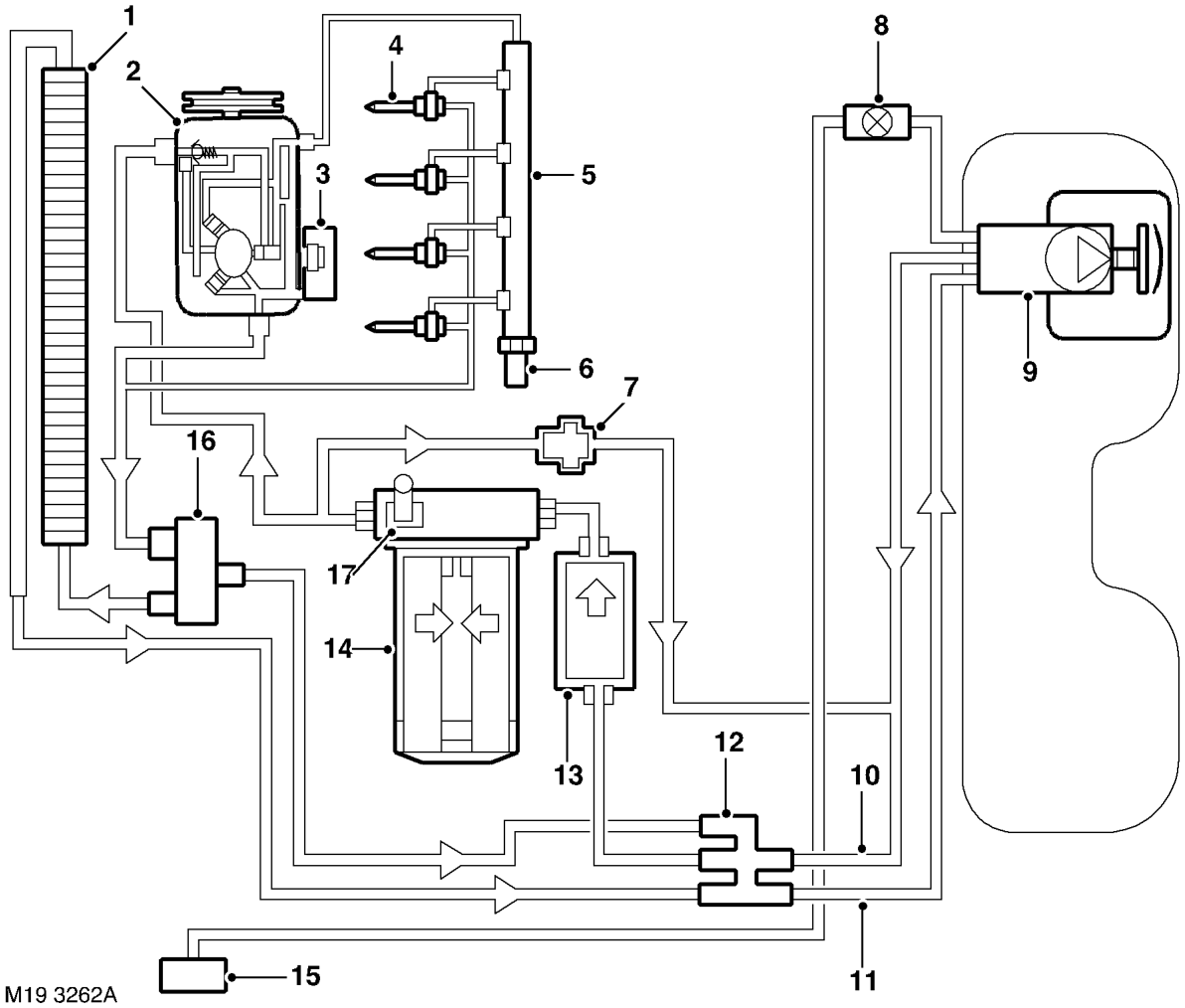

Fuel Delivery System Schematic Diagram
1 Fuel cooler 2 Fuel injection pump 3 Fuel pressure regulator 4 Fuel injector (4 off) 5 Fuel rail 6 Fuel pressure sensor 7 Pressure relief valve 8 Fuel Burning Heater (FBH) pump 9 Primary LP fuel pump
10 Supply pipe 11 Return pipe 12 Five way valve 13 Secondary LP fuel pump 14 Fuel filter 15 FBH 16 Bi-metallic valve 17 LP fuel sensor
