ABS System Failure Warning Lamps (Brakes)

Make

Land Rover

Model

Freelander System Description and Operation (UK)

Section

Description and operation › ABS System Failure Warning Lamps

BrakesABS System Failure Warning Lamps

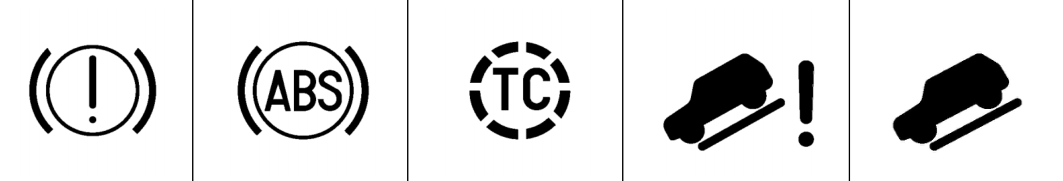

ABS System Failure Warning Lamps

Operating Condition
	Brake/ EBD (Red)	ABS (Amber)	ETC (Amber)	HDC Fault (Amber)	HDC Information (Green)
Bulb check (ABS warning lamp only flashes off if there are no faults stored in the ABS ECU): Up To 2002 MY From 2002 MY	On for 1.7 seconds On for 2.7 seconds	On for 1.7 seconds, off for 0.5 second, on until vehicle speed >7 km/h then off On for 1.7 seconds, off for 0.5 second, on for 0.5 second then off	On for 1.7 seconds On for 2.7 seconds	On for 1.7 seconds On for 2.7 seconds	On for 1.7 seconds On for 2.7 seconds
Normal operation (no faults detected)	Off	Off (after lamp check)	Off	Off	Off
Hand brake on	On	Off	Off	Off	Off
Low brake fluid	On	Off	Off	Off	Off
ABS failure	Off	On	On	On	Off
ETC failure	Off	Off	On	On	Off
ABS and EBD failure	On	On	On	On	Off
ABS ECU not connected	On	On	On	On	Off
Diagnostic mode	On	On	On	On	On
ETC disabled mode	Off	Off	On	On	Off
HDC selected, conditions not met for HDC operation	Off	Off	Off	Off	Flashes at 2Hz
HDC selected, HDC is available and vehicle ready for descent	Off	Off	Off	Off	On
HDC failure	Off	Off	Off	On	Off
Brakes overheated	Off	Off	Flashes at 2Hz	Flashes at 2Hz (if HDC selected)	-
