BrakesFront Brake Components

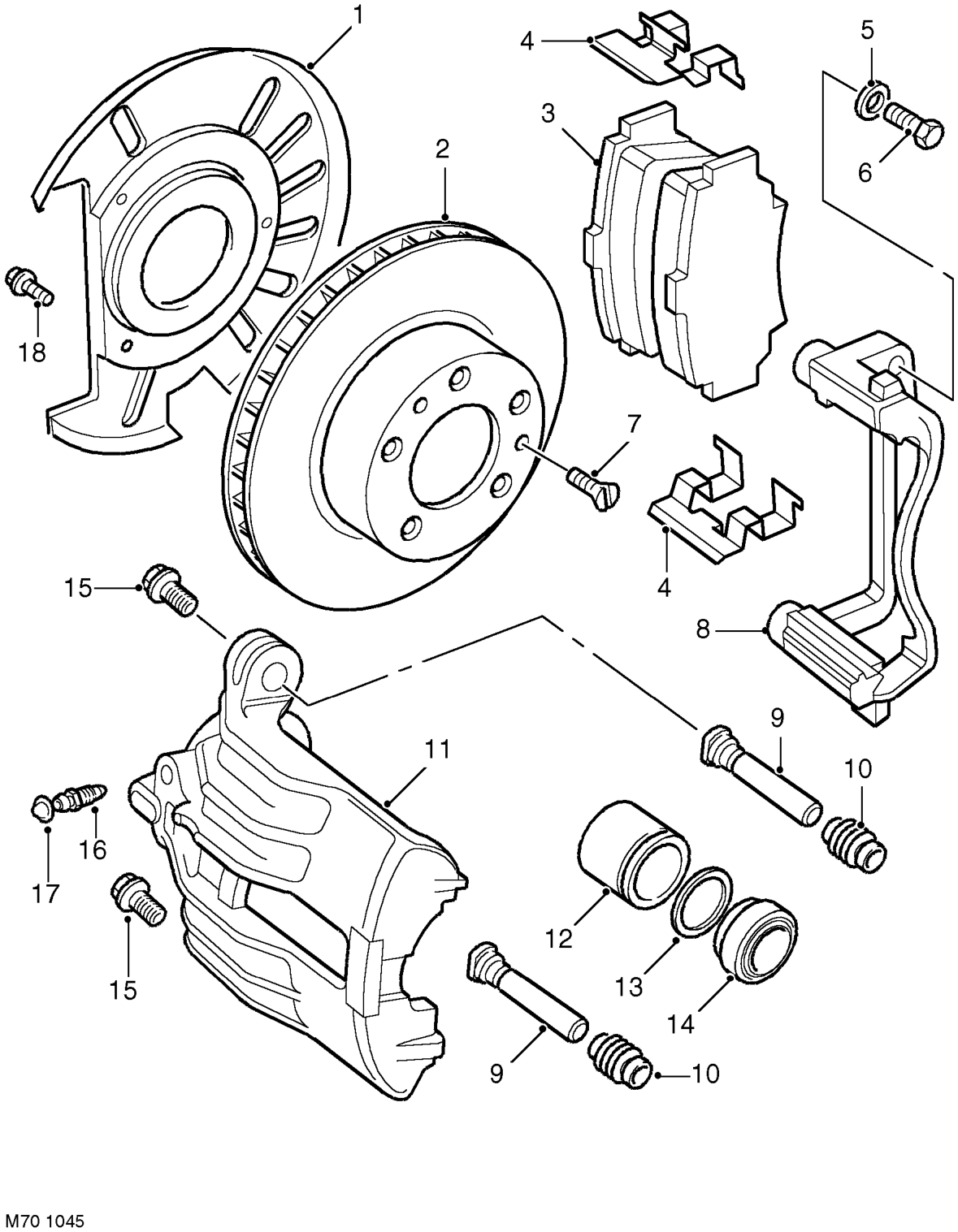

Front Brake Components
1 Mudshield 2 Brake disc-vented 3 Brake pads 4 Pad retainer 5 Washer 6 Caliper fixing bolt 7 Brake disc fixing screw 8 Caliper carrier 9 Guide pin
10 Guide pin dust cover 11 Caliper body 12 Piston 13 Piston seal 14 Piston dust cover 15 Guide pin bolt 16 Bleed screw 17 Bleed screw cap 18 Mudshield fixing bolt
