BrakesABS Modulator Schematic (Up To 2002 MY)

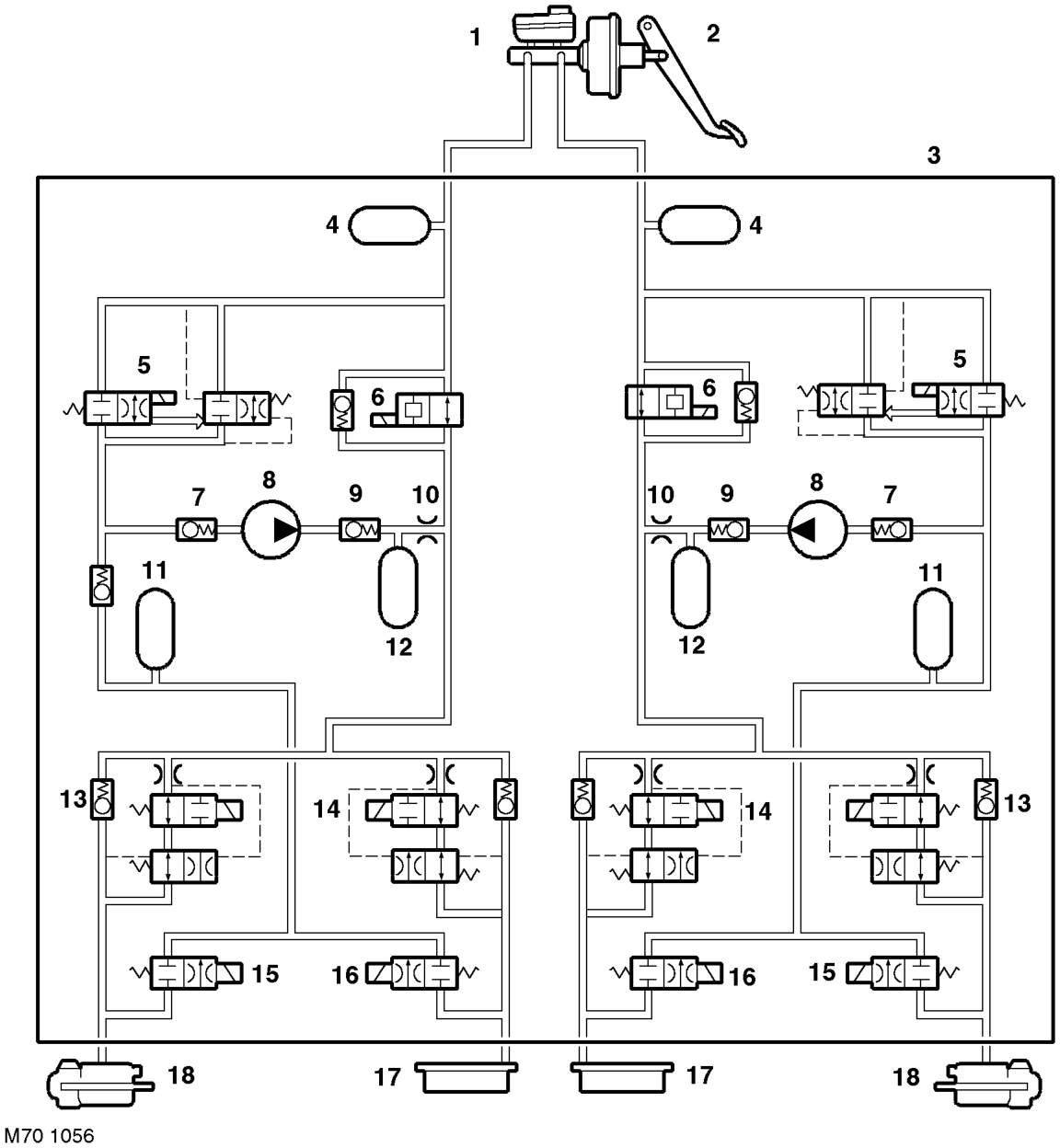

ABS Modulator Schematic (Up To 2002 MY)

1 Master cylinder 2 Brake pedal 3 ABS modulator 4 Pulsation damper 5 Solenoid valve 6 Separation valve 7 One way check valve 8 ABS pump 9 Check valve

10 Restrictor valve 11 Low pressure accumulator 12 Damper chamber 13 Check valve 14 Inlet valve 15 Outlet valve 16 Outlet valve 17 Rear brake 18 Front brake
