BrakesBrake System Layout (KV6)

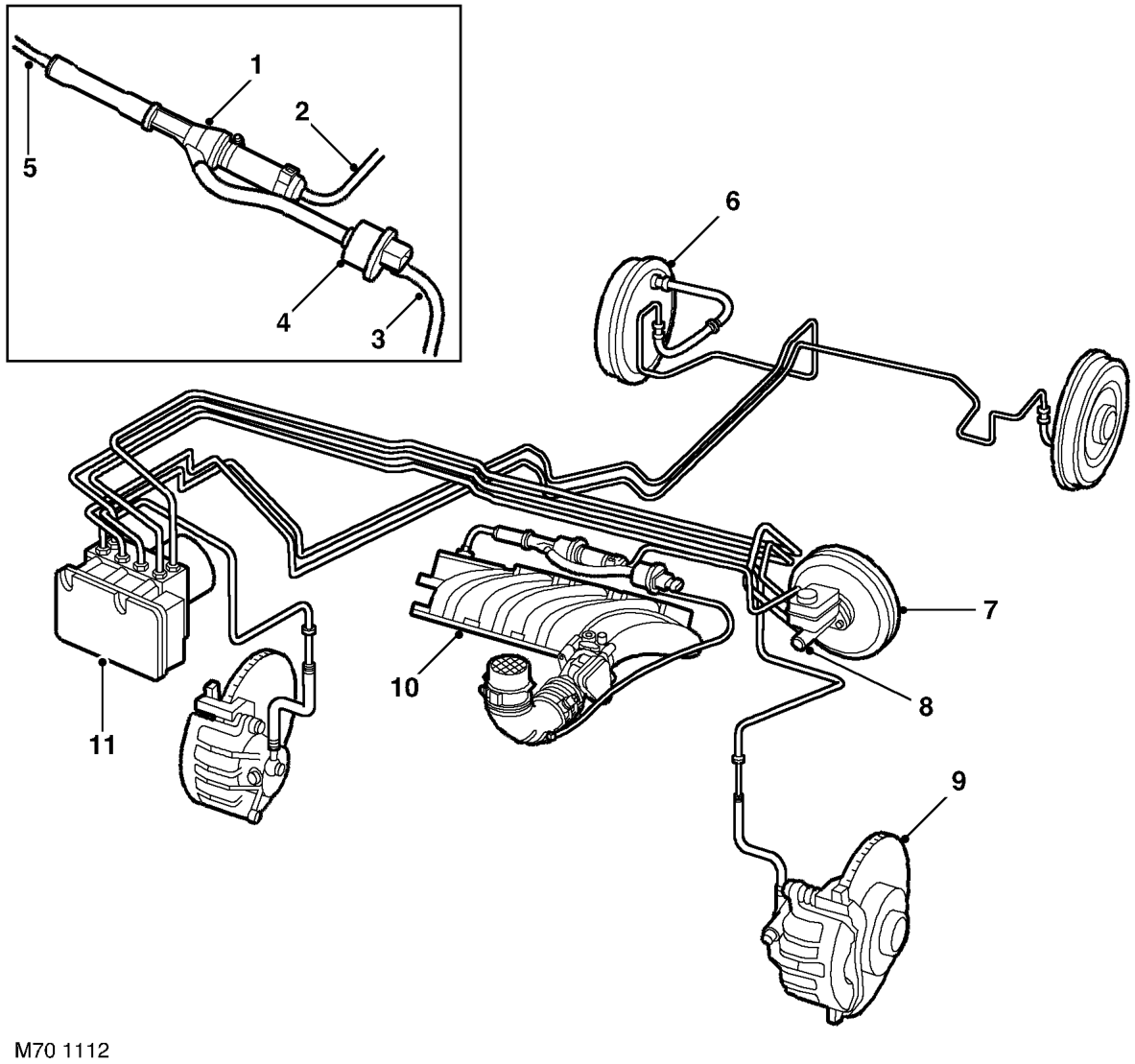

Brake System Layout (KV6)
LHD shown, RHD similar
1 Vacuum enhancer venturi valve 2 Vacuum pipe from brake servo 3 Air feed pipe from intake duct 4 Vacuum enhancer solenoid valve 5 Vacuum pipe from inlet manifold 6 Rear brake
7 Brake servo assembly 8 Master cylinder assembly 9 Front brake 10 Engine inlet manifold 11 ABS modulator/ECU
