Wipers and washers (Washer Components): Description and operation
- Make
- Land Rover
- Model
- Freelander System Description and Operation (UK)
- Section
- Description and operation › Washer Components
Wipers and washersWasher Components

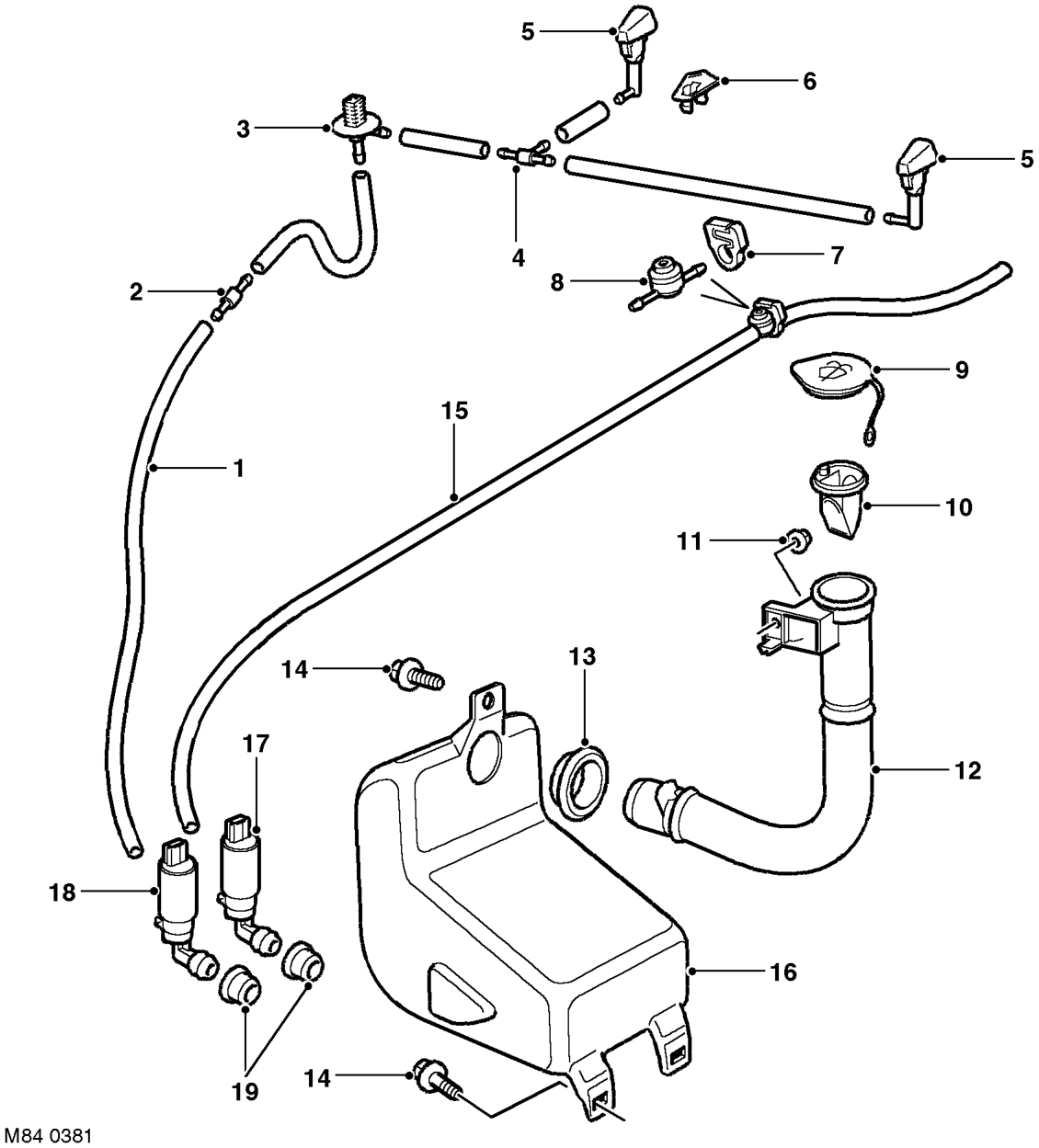

Washer Components
1 Windscreen washer hose 2 Non return valve 3 Connector elbow 4 Connector 'T' piece 5 Washer jet, 2 off 6 Washer jet holder, 2 off 7 Hose clip 8 Non return valve 9 Filler cap 10 Filler filter
11 Mounting nut 12 Filler neck tube 13 Filler neck seal 14 Mounting bolt, 3 off 15 Rear screen washer hose 16 Washer reservoir 17 Rear screen washer pump 18 Windscreen washer pump 19 Grommet, 2 off
