L322 Range Rover Service Procedures
ALARM SYSTEM AND HORN
86-5-2
REPAIRS
Horn
$% 86.30.10
Remove
1. Raise RH front of vehicle and support on stand.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

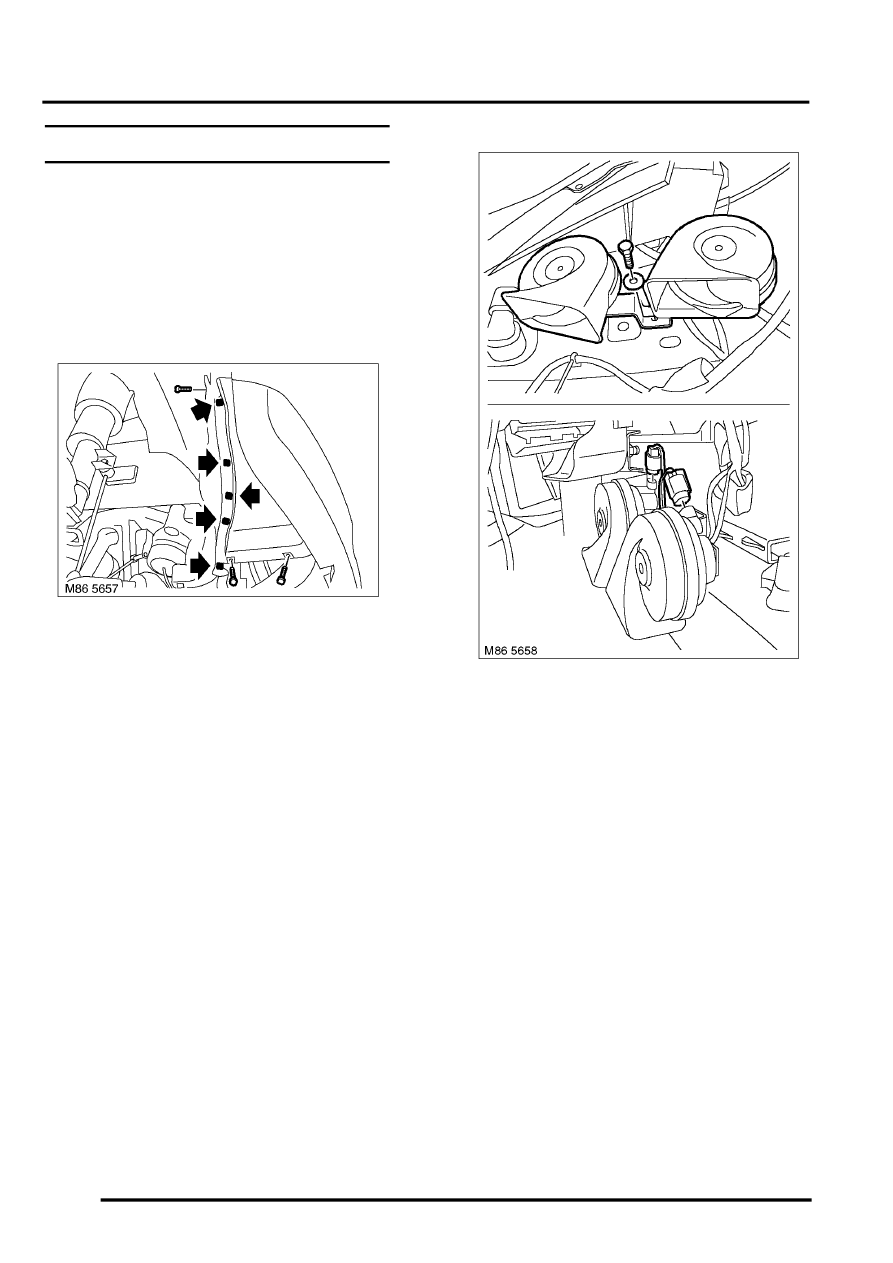

2. Remove 5 scrivets and 3 screws securing RH
wheel arch extension to splash shield and
bumper.
3. Remove front wheel arch extension.
4. Remove bolt securing horn assembly to
armature. Remove horns.
5. Disconnect horn multiplugs.
NOTE: Do not carry out further dismantling if
component is removed for access only.
6. Remove nuts securing horns to mounting
brackets. Collect horns.
Refit
1. Position horns to mounting bracket, fit nuts and
tighten to 10 Nm (7 lbf.ft).
2. Connect multiplugs.
3. Position horn assembly to armature, fit and
tighten bolt to 10 Nm (7 lbf.ft).
4. Fit and secure wheel arch extension.
5. Lower vehicle.
