10. Position LRT-51-022/2 to sub-frame, fit LRT-
51-022/5 through the bush and screw to LRT-
51-022/2.
11. Position LRT-51-022/1 to LRT-51-022/5, fit nut
to drawbar and finger tighten.
12. Remove bush from rear sub-frame.
13. Dismantle tool and recover bush.
Refit
1. Clean bush housing and mating faces.
2. Apply rubber lubricant to new bush and bore.
3. Position LRT-51-022/3 to sub-frame.
4. Fit LRT-51-022/5 to LRT-51-022/3.
5. Position new bush to LRT-51-022/5.
6. Fit LRT-51-022/4 to LRT-51-022/5 and finger
tighten nut.
7. Fit bush to rear sub-frame.
8. Remove and dismantle tool.
9. Position jack and raise differential into position.

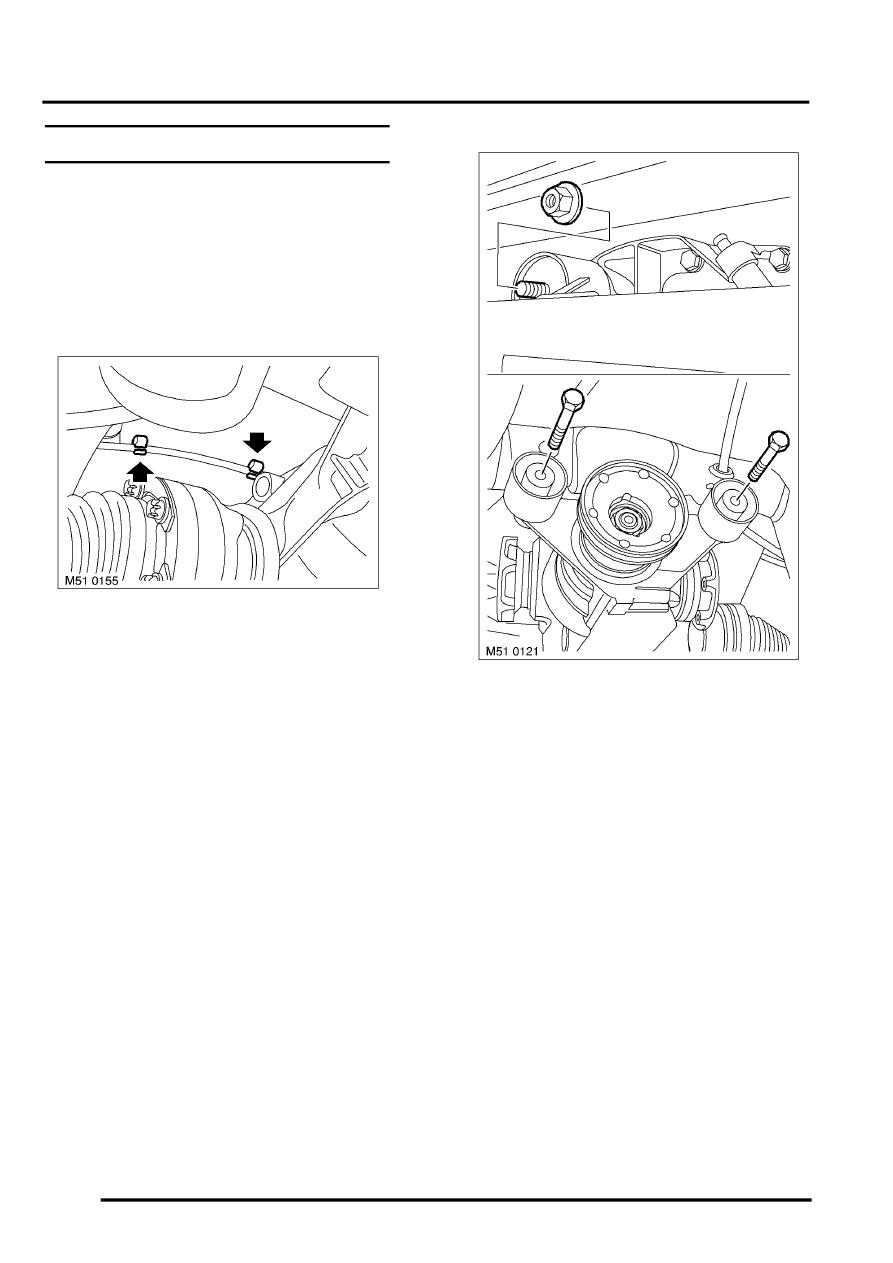

10. Fit new bolts securing differential to subframe
and tighten bolts to 100 Nm (74 lbf.ft) and new
rear nut and bolt to 165 Nm (121 lbf.ft).
11. Remove support jack
12. Fit and secure differential breather pipe to clips
on body.
13. Fit rear propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
14. Connect battery earth lead.
