Range Rover P38
41
TRANSFER BOX
NEW RANGE ROVER
2
REPAIR
RATIO CONTROL MOTOR
Service repair no - 41.30.03

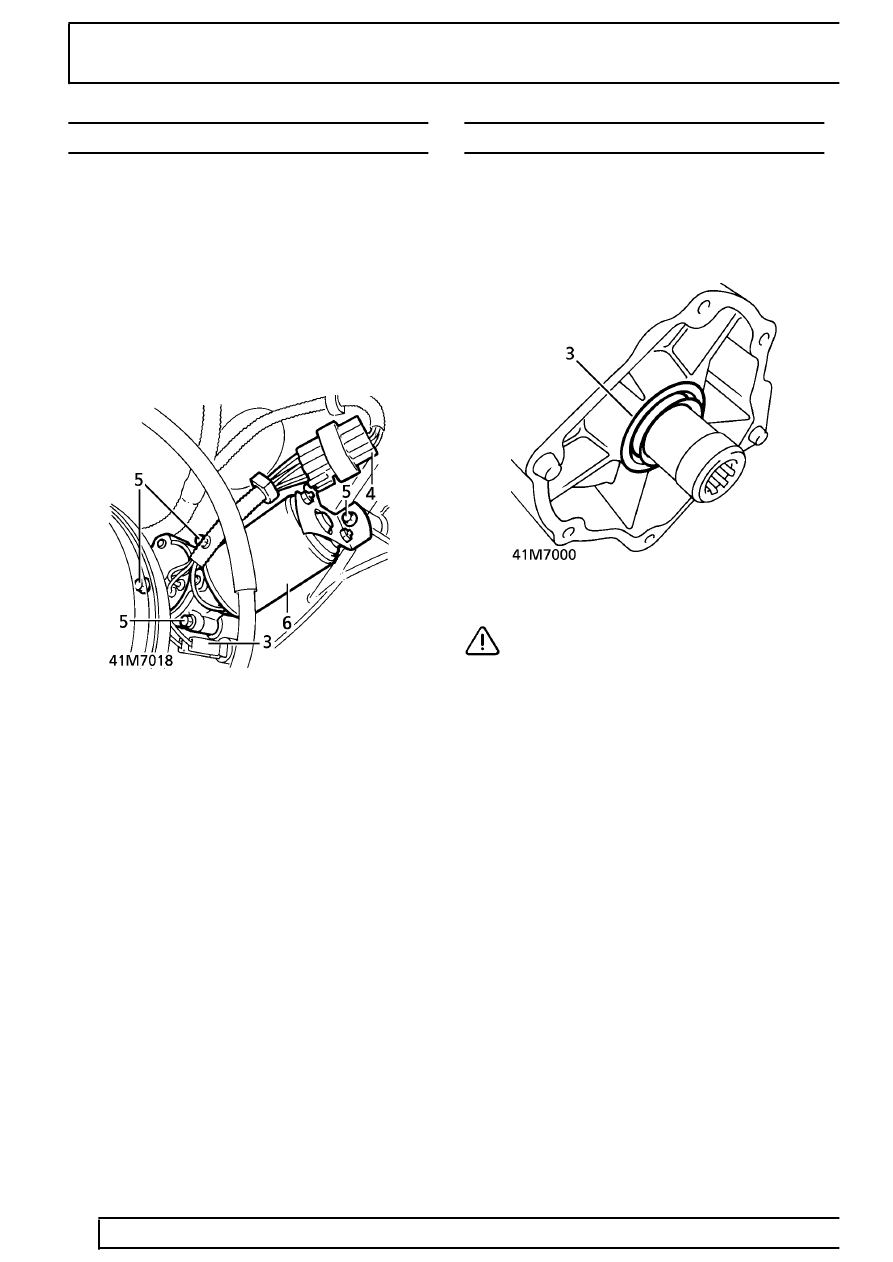

Remove
1. Raise vehicle on four post lift.
2. Disconnect battery negative lead.
3. Disconnect temperature sensor.
4. Disconnect motor multiplug.
5. Remove 4 bolts securing motor to transfer
gearbox.
6. Remove motor.
Refit
7. Fit motor and engage to drive spindle.
8. Tighten bolts to
10Nm (7 lbf.ft).
9. Connect motor and temperature sensor.
10. Reconnect battery negative lead.
11. Lower vehicle.
INPUT SHAFT OIL SEAL
Service repair no - 41.20.50
1. Disconnect battery negative lead.
2. Remove transfer box.
See this section.
3. Lever seal from location in transfer box.
CAUTION: Ensure seal location does not
become damaged.
Refit
4. Ensure mating faces are clean.
5. Lubricate seal lip with transmission fluid.
6. Using LRT-41-011, fit seal to transfer box.
7. Fit transfer box.
See this section.
8. Reconnect battery negative lead.
