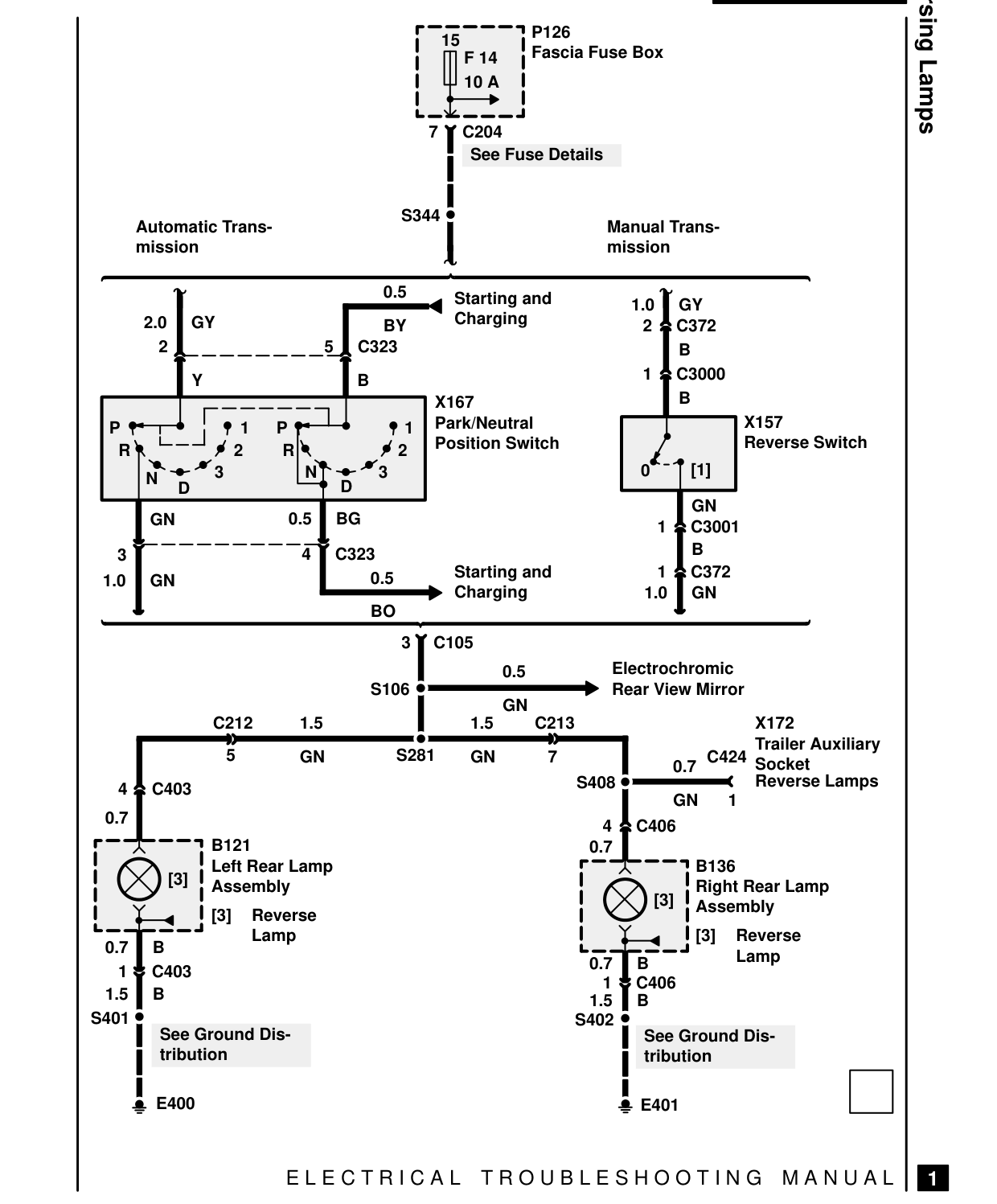

Reversing lamps – circuit diagram

REVERSING LAMPS – CIRCUIT DIAGRAM

15 F 14 10 A

7 C204 See Fuse Details

S344 Automatic Trans- mission

0.5 Starting and Charging 2.0 GY BY 2 5 C323

Y B X167 Park/Neutral P 1 P 1 Position Switch R 2 R 2 3 N 3 N D D 0.5 BG GN

4 C323 3 Starting and 0.5 1.0 GN Charging BO 3 C105

S106

C212 1.5 1.5 5 S281 GN GN 4 C403 0.7 B121 Left Rear Lamp [3] Assembly [3] Reverse Lamp 0.7 B 1 C403 1.5 B S401 See Ground Dis- tribution

E400

E L E C T R I C A L

Reversing Lamps P126 Fascia Fuse Box

Manual Trans- mission

1.0 GY 2 C372 B 1 C3000 B X157 Reverse Switch [1] 0

GN 1 C3001 B 1 C372 1.0 GN

Electrochromic 0.5 Rear View Mirror GN X172 C213 Trailer Auxiliary 7 C424 Socket 0.7 Reverse Lamps S408 GN 1 4 C406 0.7 B136 Right Rear Lamp [3] Assembly [3] Reverse Lamp 0.7 B 1 C406 1.5 B S402 See Ground Dis- tribution

E401

T R O U B L E S H O O T I N G M A N U A L
