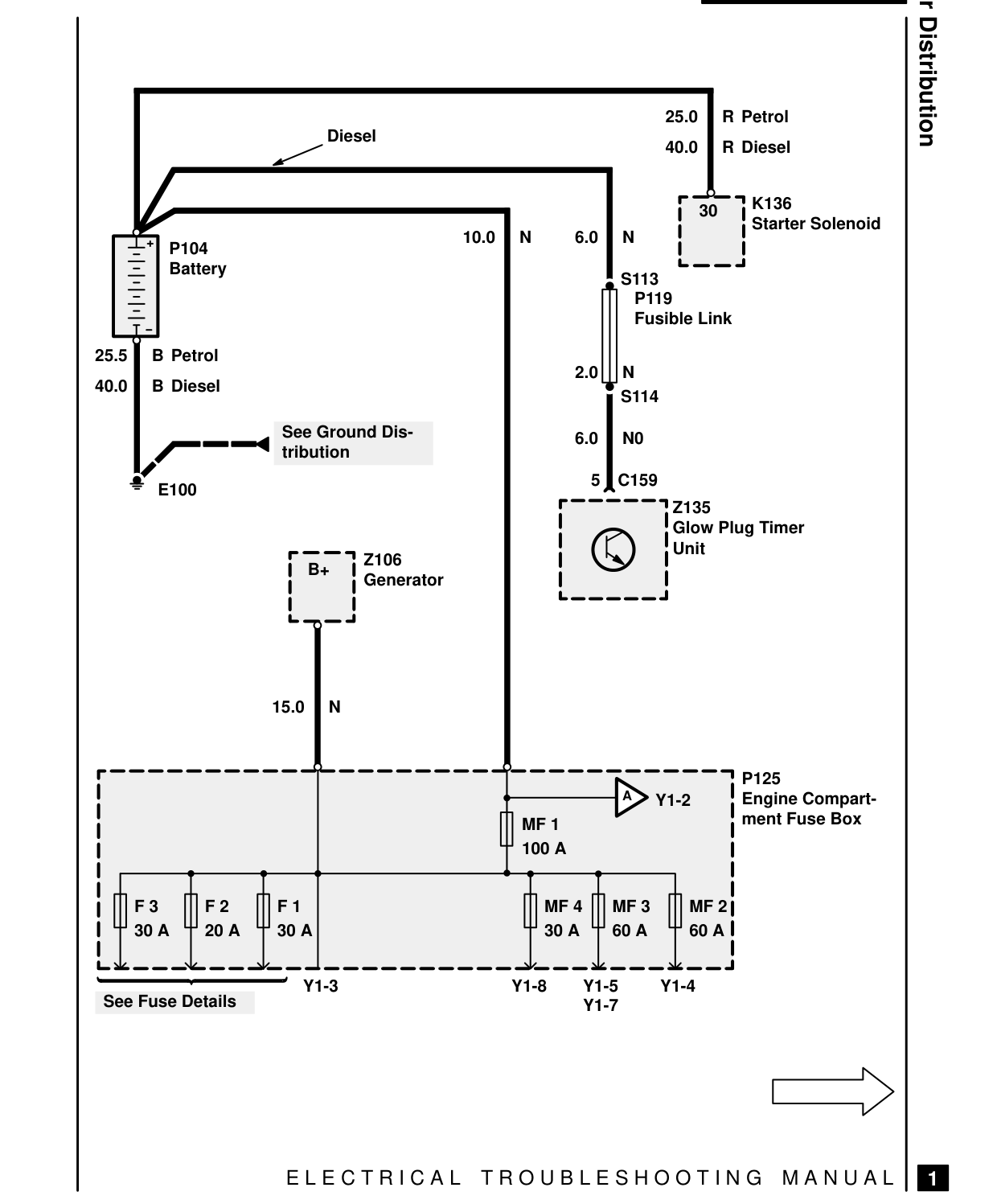

Power distribution – circuit diagram

POWER DISTRIBUTION – CIRCUIT DIAGRAM

Diesel

10.0 P104 Battery

Petrol 25.5 B 40.0 B Diesel

See Ground Dis- tribution

E100

Z106 B+ Generator

15.0 N

F 3 F 2 F 1 30 A 20 A 30 A

Y1-3 See Fuse Details

E L E C T R I C A L

Power Distribution Petrol 25.0 R Diesel 40.0 R

K136 30 Starter Solenoid N 6.0 N

S113 P119 Fusible Link

2.0 N S114

6.0 N0

5 C159 Z135 Glow Plug Timer Unit

P125 A Engine Compart- Y1-2 ment Fuse Box MF 1 100 A

MF 4 MF 3 MF 2 30 A 60 A 60 A

Y1-8 Y1-5 Y1-4 Y1-7

T R O U B L E S H O O T I N G M A N U A L

1
