Power distribution – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Power distribution – circuit diagram

Power distributionPower distribution – circuit diagram

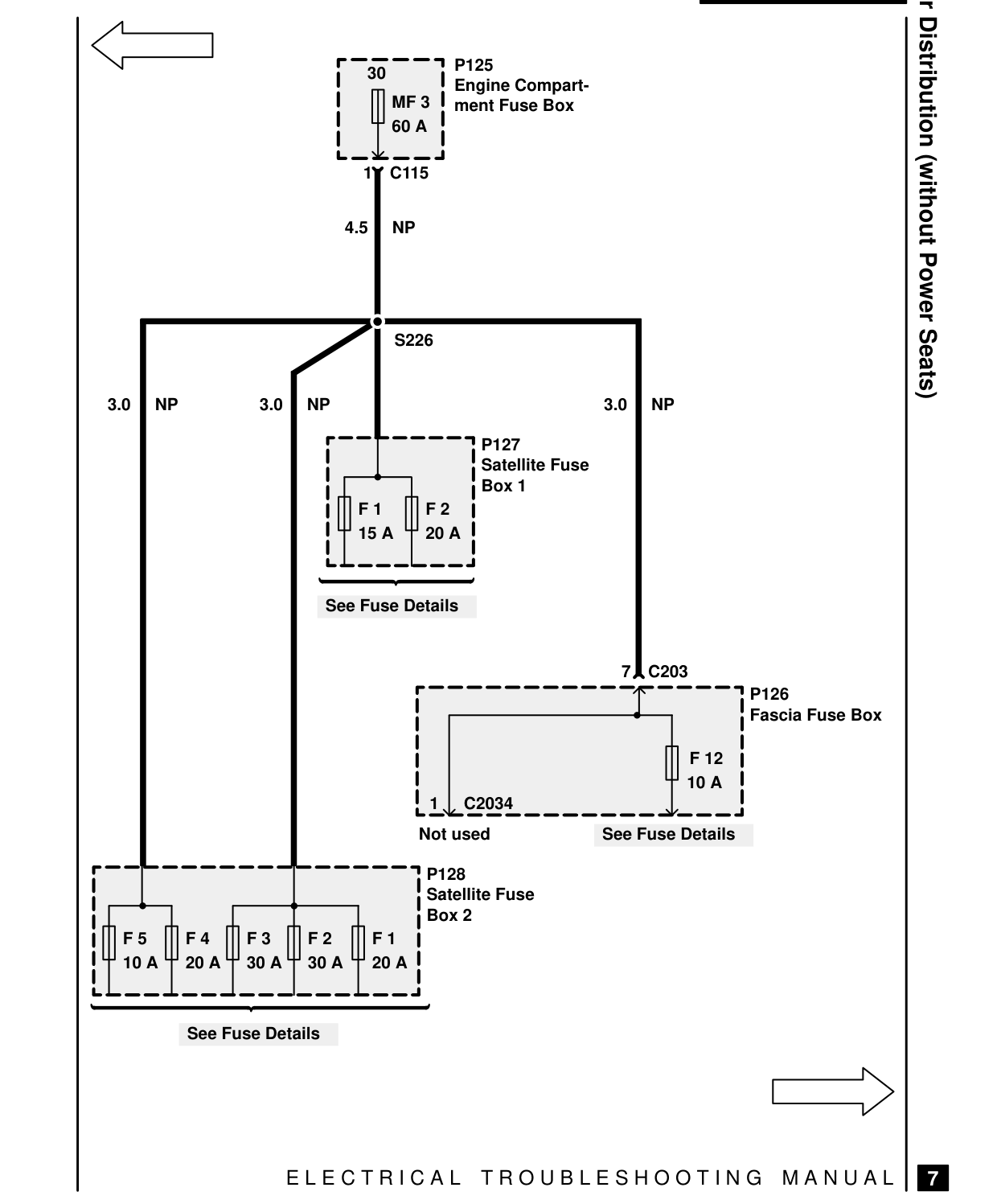

POWER DISTRIBUTION – CIRCUIT DIAGRAM

P125 30 Engine Compart- MF 3 ment Fuse Box 60 A

1 C115

4.5 NP

S226

3.0 NP 3.0 NP

F 1 F 2 15 A 20 A

See Fuse Details

1 C2034 Not used

P128 Satellite Fuse Box 2 F 5 F 4 F 3 F 2 F 1 10 A 20 A 30 A 30 A 20 A

See Fuse Details

E L E C T R I C A L

Power Distribution (without Power Seats) 3.0 NP

P127 Satellite Fuse Box 1

7 C203 P126 Fascia Fuse Box

F 12 10 A

See Fuse Details

T R O U B L E S H O O T I N G M A N U A L

7

46 General
