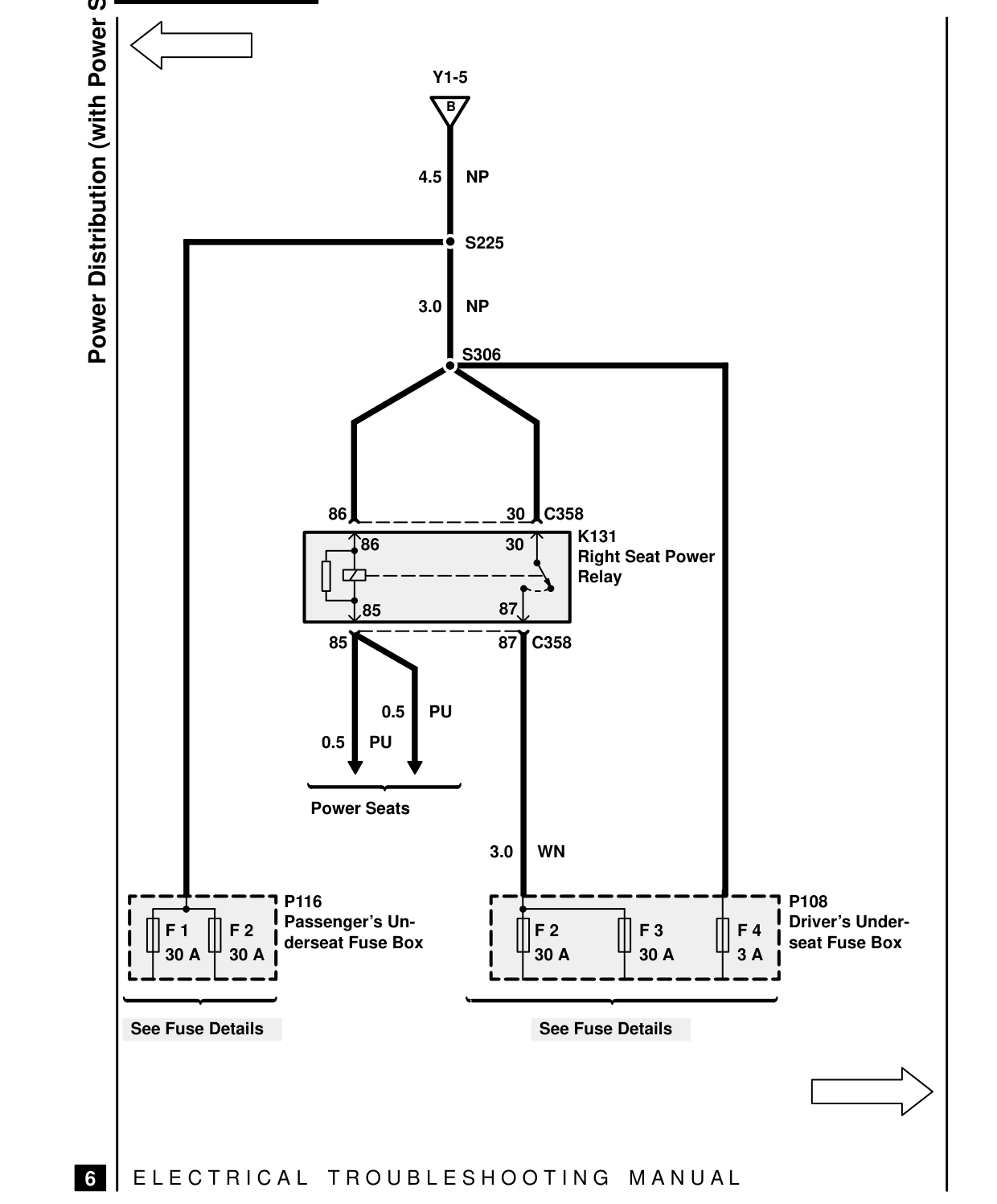

POWER DISTRIBUTION – CIRCUIT DIAGRAM

Power Distribution (with Power Seats) Y1-5 B

4.5

3.0

86 86

85 85

0.5 PU 0.5 PU

Power Seats

P116 Passenger’s Un- F 1 F 2 derseat Fuse Box 30 A 30 A

See Fuse Details

E L E C T R I C A L T R O U B L E S H O O T I N G

6

NP

S225

NP

S306

30 C358 K131 30 Right Seat Power Relay 87

87 C358

3.0 WN

P108 Driver’s Under- F 2 F 3 F 4 seat Fuse Box 30 A 30 A 3 A

See Fuse Details
