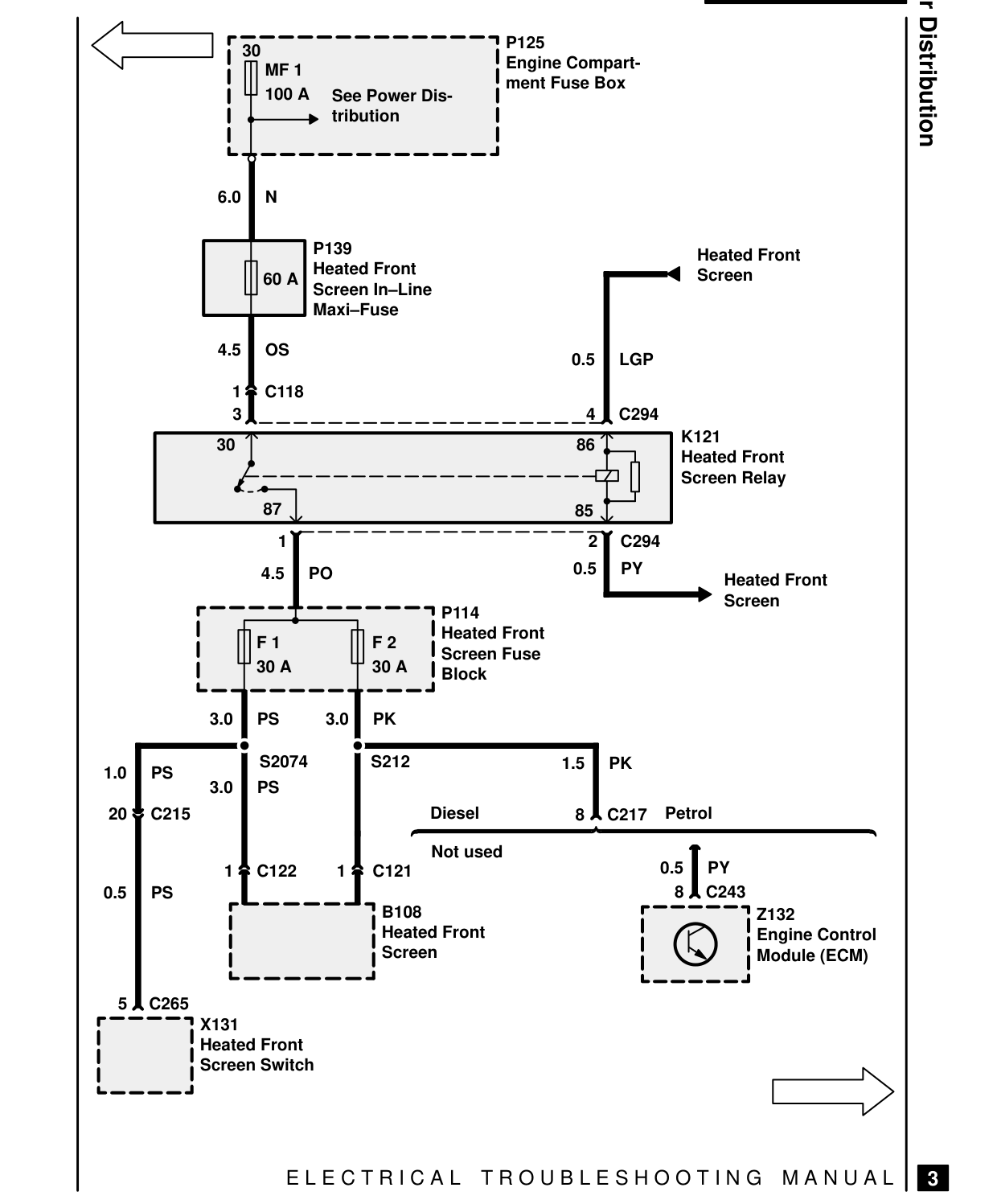

Power distribution – circuit diagram

POWER DISTRIBUTION – CIRCUIT DIAGRAM

30 MF 1 100 A See Power Dis- tribution

6.0 N

P139 Heated Front 60 A Screen In-Line Maxi-Fuse

4.5 OS

1 C118 3 30

87 1 4.5 PO

P114 Heated Front F 1 F 2 Screen Fuse 30 A 30 A Block

3.0 PS 3.0 PK

S2074 S212 1.0 PS 3.0 PS Diesel 20 C215

Not used 1 C122 1 C121 0.5 PS B108 Heated Front Screen

5 C265 X131 Heated Front Screen Switch

E L E C T R I C A L

Power Distribution P125 Engine Compart- ment Fuse Box

Heated Front Screen

0.5 LGP

4 C294 K121 86 Heated Front Screen Relay

85 C294 2 0.5 PY Heated Front Screen

1.5 PK

Petrol 8 C217

0.5 PY 8 C243 Z132 Engine Control Module (ECM)

T R O U B L E S H O O T I N G M A N U A L

3
