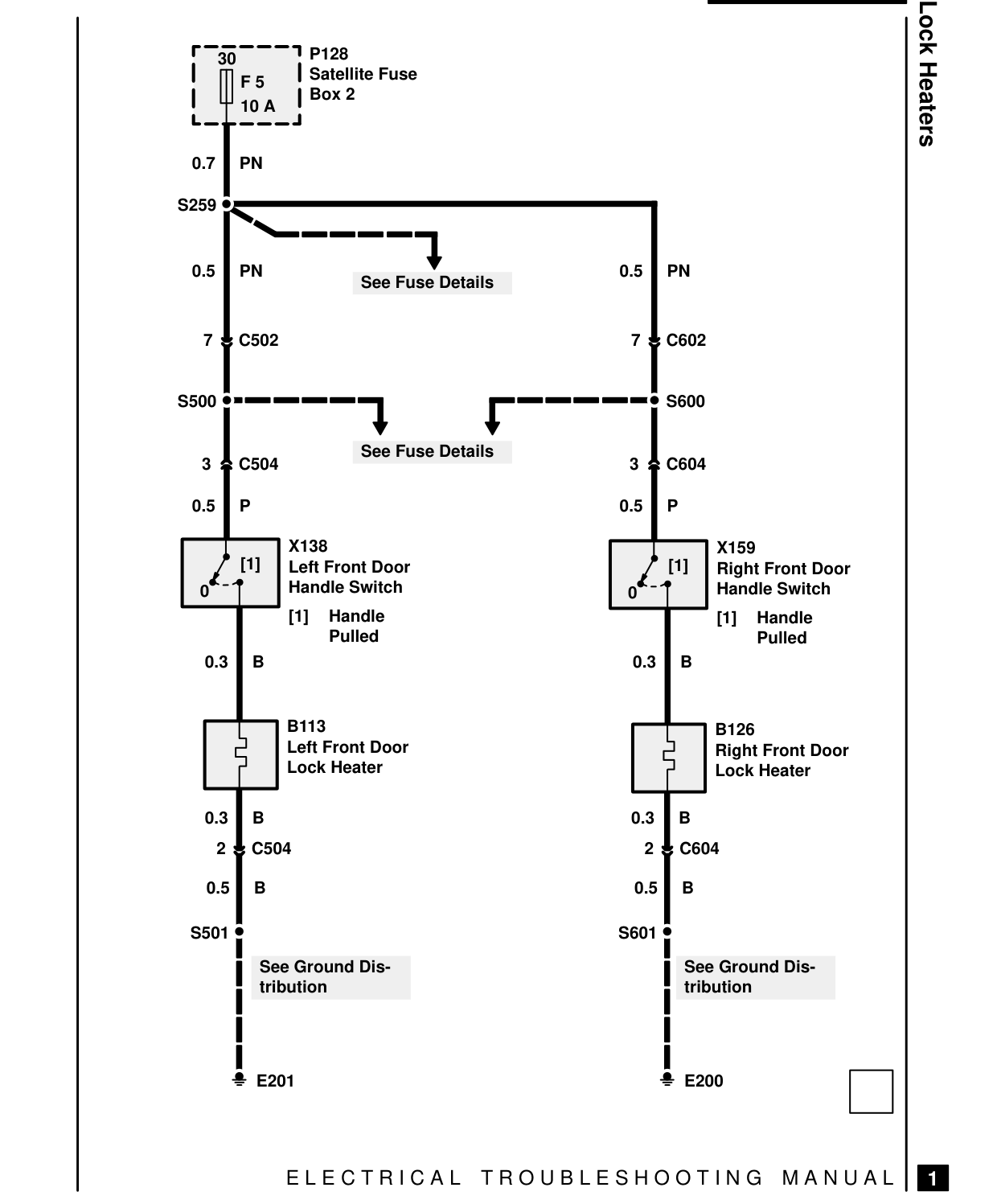

Door lock heaters – circuit diagram

DOOR LOCK HEATERS – CIRCUIT DIAGRAM

P128 30 Satellite Fuse F 5 Box 2 10 A

0.7 PN

S259

0.5 PN See Fuse Details

7 C502

S500

See Fuse Details 3 C504

0.5 P

X138 [1] Left Front Door Handle Switch 0 [1] Handle Pulled 0.3 B

B113 Left Front Door Lock Heater

0.3 B 2 C504

0.5 B

S501

See Ground Dis- tribution

E201

E L E C T R I C A L

Door Lock Heaters

0.5 PN

7 C602

S600

3 C604

0.5 P

X159 [1] Right Front Door Handle Switch 0 [1] Handle Pulled 0.3 B

B126 Right Front Door Lock Heater

0.3 B 2 C604

0.5 B

S601

See Ground Dis- tribution

E200

T R O U B L E S H O O T I N G M A N U A L

1
