Central locking (Japan) – fault diagnosis

CENTRAL LOCKING (JAPAN) – FAULT DIAGNOSIS

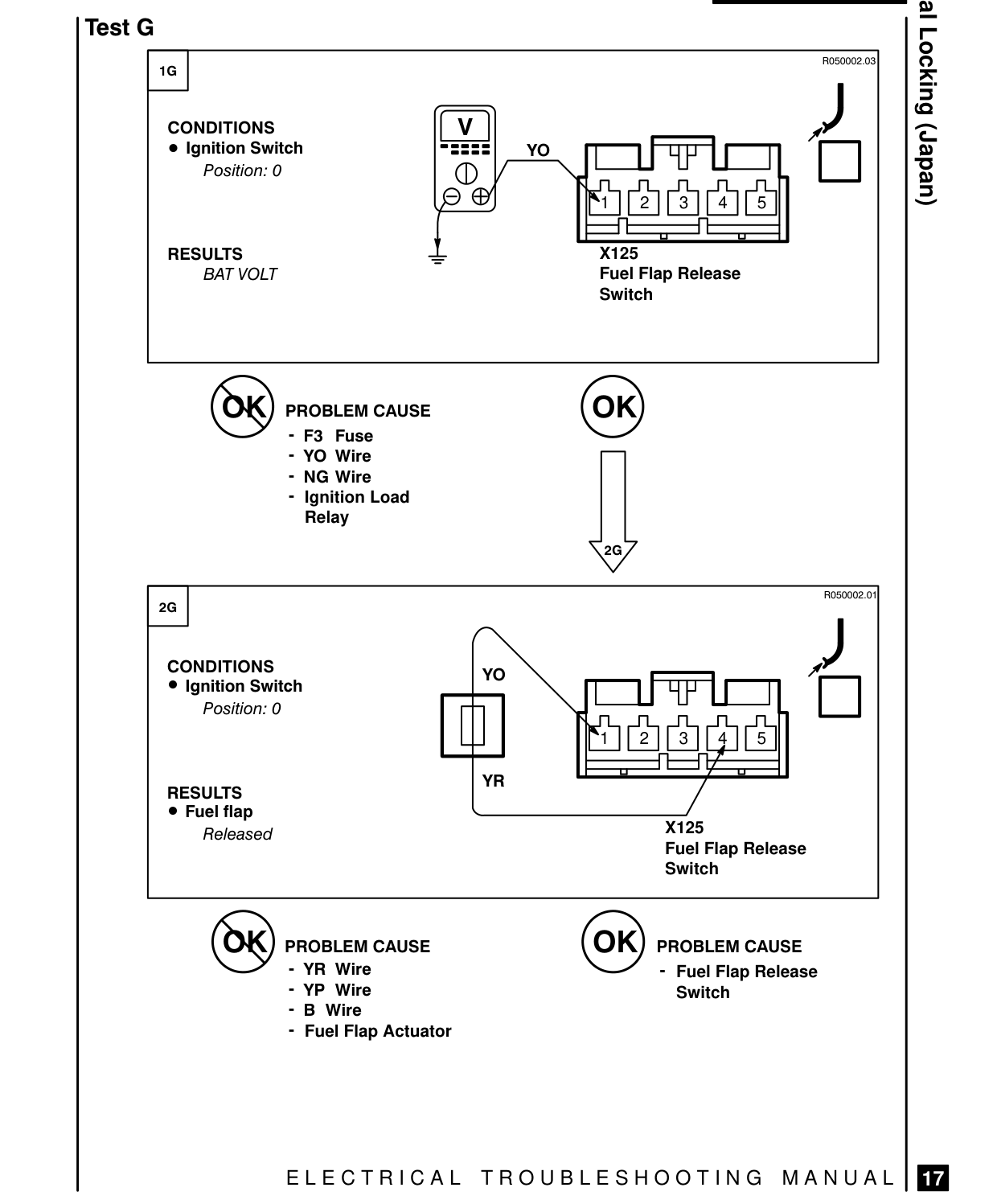

Test G

CONDITIONS e Ignition Switch SEER oon osition: 0 of

RESULTS BAT VOLT

(5) PROBLEM CAUSE - F3 Fuse - YO Wire - NG Wire - Ignition Load Relay

CONDITIONS ® Ignition Switch Position: 0 li}

RESULTS ® Fuel flap Released

(59) PROBLEM CAUSE - YR Wire - YP Wire - B Wire = Fuel Flap Actuator

ELECTRICAL

R050002.03

ES BEE vo [CUT mame] Ee X125 Fuel Flap Release Switch

R050002.01

9F |] i in ; 0 no

X125 Fuel Flap Release Switch

PROBLEM CAUSE = Fuel Flap Release Switch

TROUBLESHOOTING MANUAL
