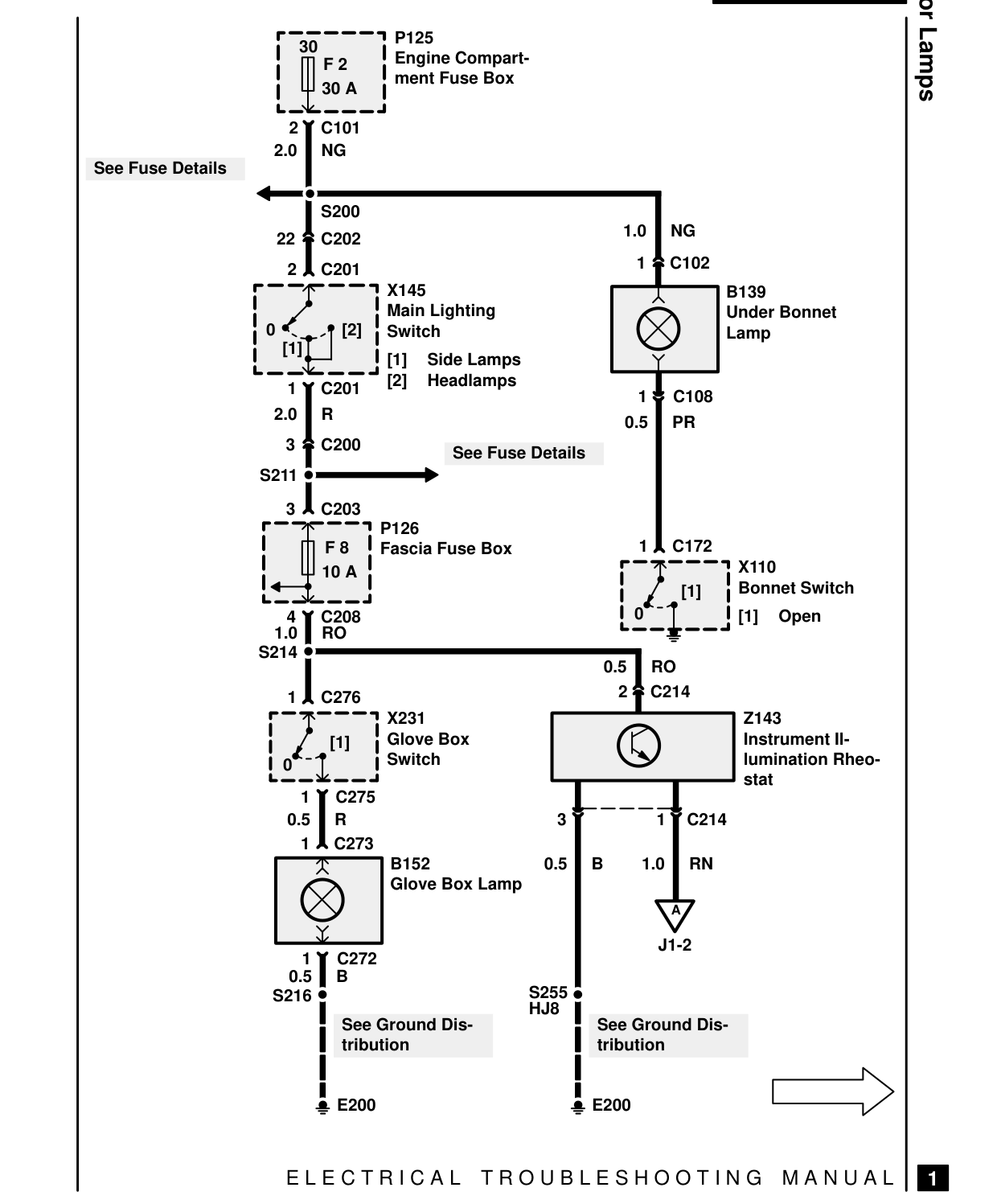

Interior lamps – circuit diagram

INTERIOR LAMPS – CIRCUIT DIAGRAM

P125 30 Engine Compart- F 2 ment Fuse Box 30 A

2 C101 2.0 NG See Fuse Details

S200 22 C202 2 C201 X145 Main Lighting 0 [2] Switch [1] [1] Side Lamps [2] Headlamps 1 C201 2.0 R 3 C200 See Fuse Details S211

3 C203 P126 F 8 Fascia Fuse Box 10 A

4 C208 1.0 RO S214

1 C276 X231 Glove Box [1] Switch 0 1 C275 0.5 R 1 C273 B152 Glove Box Lamp

1 C272 0.5 B S216 See Ground Dis- tribution

E200

E L E C T R I C A L

Interior Lamps

1.0 NG 1 C102 B139 Under Bonnet Lamp

1 C108 0.5 PR

1 C172 X110 Bonnet Switch [1] 0 [1] Open

0.5 RO 2 C214 Z143 Instrument Il- lumination Rheo- stat

3 1 C214

0.5 B 1.0 RN

A

J1-2

S255 HJ8 See Ground Dis- tribution

E200
