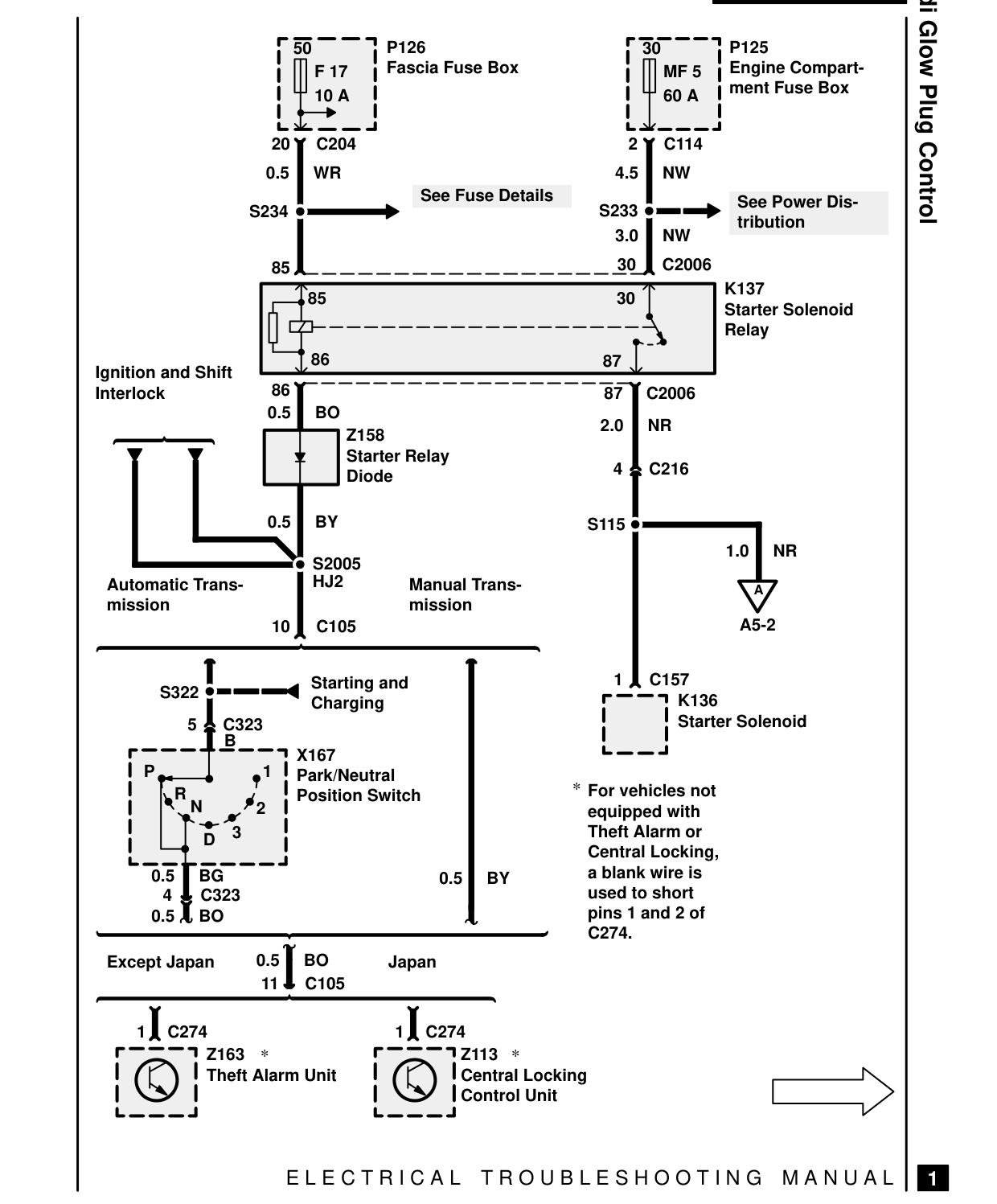

300Tdi glow plug control – circuit diagram

300TDI GLOW PLUG CONTROL – CIRCUIT DIAGRAM

P126 50 Fascia Fuse Box F 17 10 A

20 C204 0.5 WR See Fuse Details S234

85 85

86 Ignition and Shift 86 Interlock 0.5 BO Z158 Starter Relay Diode

0.5 BY

S2005 HJ2 Automatic Trans- Manual Trans- mission mission 10 C105

Starting and S322 Charging 5 C323 B X167 1 P Park/Neutral R Position Switch N 2 3 D

0.5 BG 0.5 C323 4 0.5 BO

0.5 BO Except Japan Japan 11 C105

C274 1 C274 1 Z163 Z113

Theft Alarm Unit Central Locking Control Unit

E L E C T R I C A L

300Tdi Glow Plug Control P125 30 Engine Compart- MF 5 ment Fuse Box 60 A

2 C114 4.5 NW See Power Dis- S233 tribution 3.0 NW 30 C2006 K137 30 Starter Solenoid Relay 87 87 C2006 2.0 NR

4 C216

S115 1.0 NR

A

A5-2

1 C157 K136 Starter Solenoid

For vehicles not

equipped with Theft Alarm or Central Locking, a blank wire is BY used to short pins 1 and 2 of C274.

T R O U B L E S H O O T I N G M A N U A L

1
