300Tdi with EGR – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › 300Tdi with EGR – circuit diagram

300Tdi with EGR300Tdi with EGR – circuit diagram

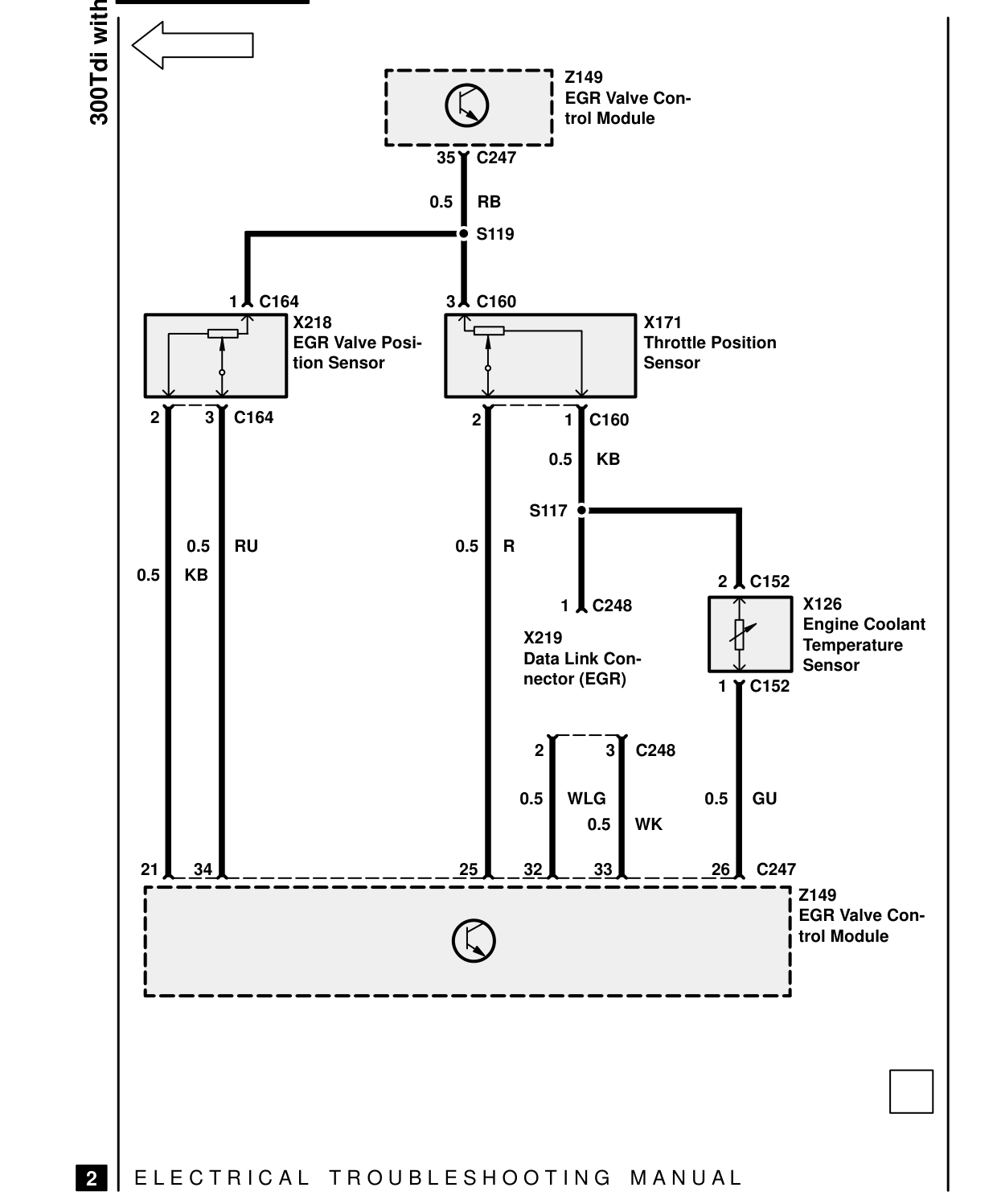

300TDI WITH EGR – CIRCUIT DIAGRAM

300Tdi with EGR

35

0.5

3 1 C164 X218 EGR Valve Posi- tion Sensor

2 3 C164

0.5 RU 0.5 0.5 KB

21 34 25

E L E C T R I C A L T R O U B L E S H O O T I N G

2

Z149 EGR Valve Con- trol Module

C247

RB S119

C160 X171 Throttle Position Sensor

2 1 C160

0.5 KB

S117

R

2 C152 X126 1 C248 Engine Coolant X219 Temperature Data Link Con- Sensor nector (EGR) 1 C152

2 3 C248

0.5 WLG 0.5 GU 0.5 WK

32 33 26 C247 Z149 EGR Valve Con- trol Module
