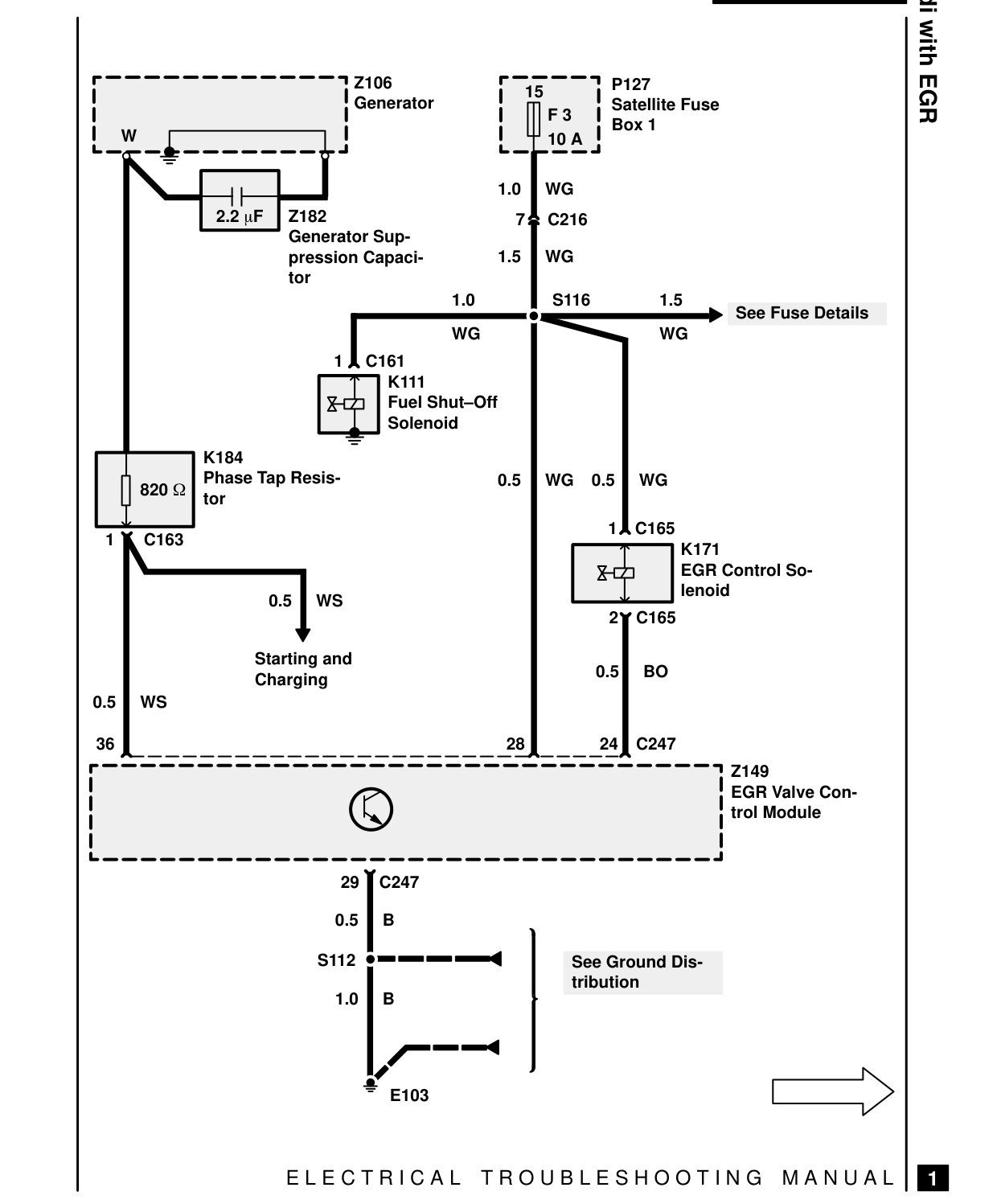

300Tdi with EGR – circuit diagram

300TDI WITH EGR – CIRCUIT DIAGRAM

Z106 Generator W

2.2  F

Z182 Generator Sup- pression Capaci- tor 1.0

WG 1 C161 K111 Fuel Shut-Off Solenoid

K184 Phase Tap Resis-

820

tor

1 C163

0.5 WS

Starting and Charging 0.5 WS

36

29 C247

0.5 B

S112

1.0 B

E103

E L E C T R I C A L

300Tdi with EGR P127 15 Satellite Fuse F 3 Box 1 10 A

1.0 WG 7 C216

1.5 WG

S116 1.5 See Fuse Details WG

0.5 WG 0.5 WG

1 C165 K171 EGR Control So- lenoid 2 C165

0.5 BO

28 24 C247 Z149 EGR Valve Con- trol Module

See Ground Dis- tribution

T R O U B L E S H O O T I N G M A N U A L

1
