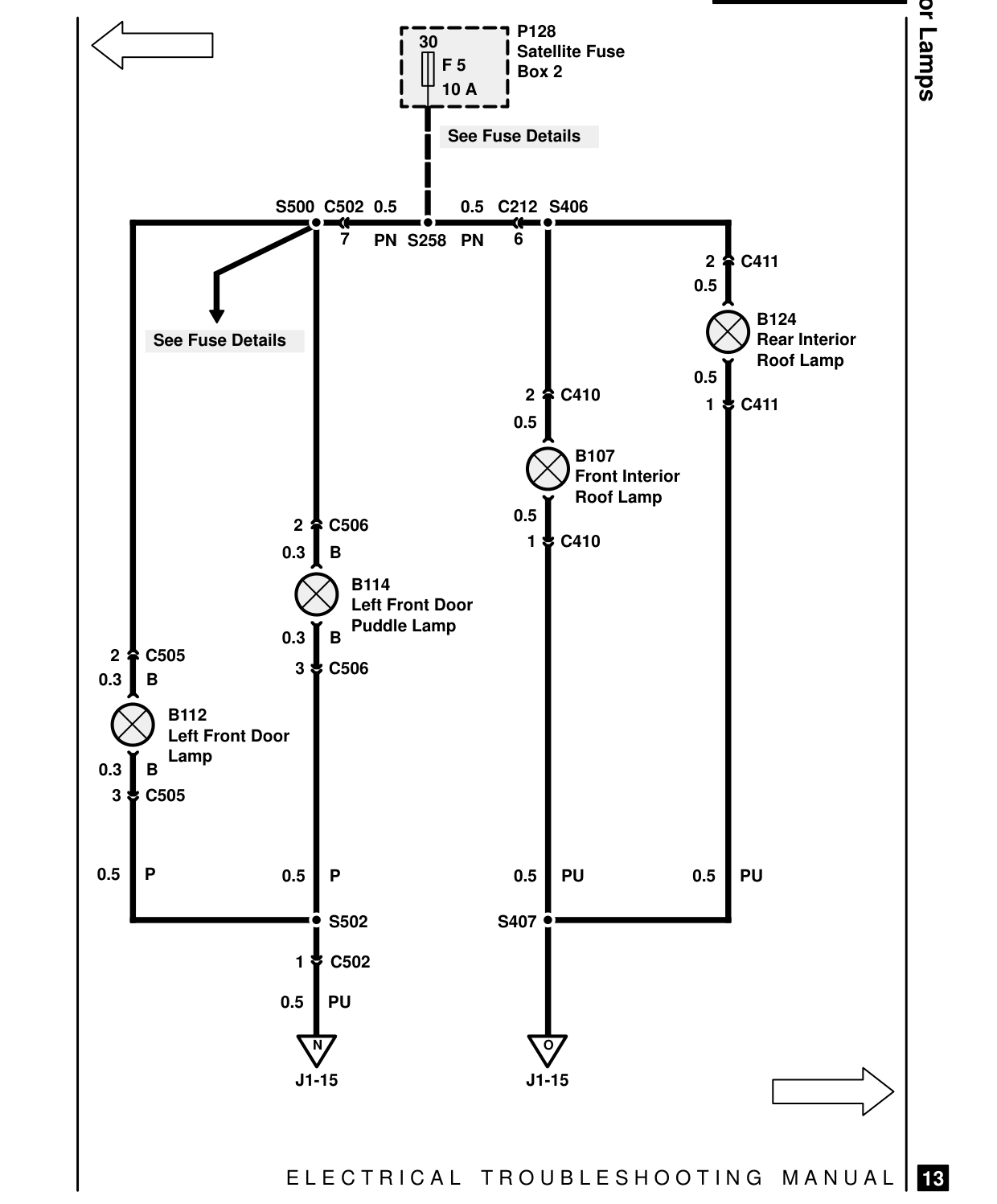

Interior lamps – circuit diagram

INTERIOR LAMPS – CIRCUIT DIAGRAM

30 F 5 10 A

See Fuse Details

0.5 0.5 S500 C502 7 PN PN S258

See Fuse Details

2 C506 0.3 B B114 Left Front Door Puddle Lamp 0.3 B 2 C505 3 C506 0.3 B

B112 Left Front Door Lamp 0.3 B 3 C505

0.5 P 0.5 P

S502

1 C502

0.5 PU

N

J1-15

E L E C T R I C A L

Interior Lamps P128 Satellite Fuse Box 2

C212 S406 6 2 C411 0.5

B124 Rear Interior Roof Lamp 0.5 2 C410 1 C411 0.5

B107 Front Interior Roof Lamp 0.5 1 C410

0.5 PU 0.5 PU

S407

O

J1-15

T R O U B L E S H O O T I N G M A N U A L

13
