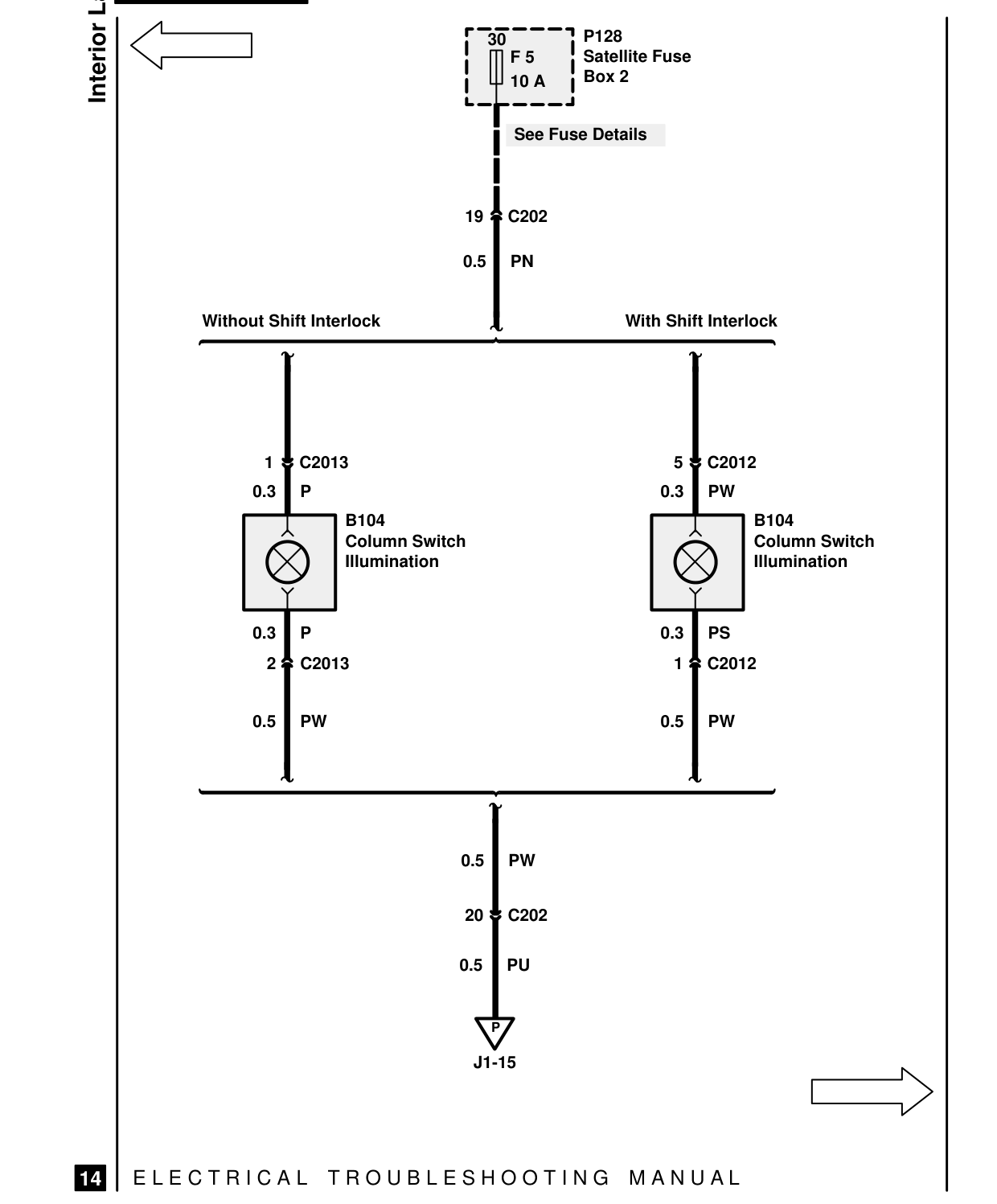

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps

Without Shift Interlock

1 C2013 0.3 P B104 Column Switch Illumination

0.3 P 2 C2013

0.5 PW

E L E C T R I C A L T R O U B L E S H O O T I N G

14

P128 30 Satellite Fuse F 5 Box 2 10 A

See Fuse Details

19 C202

0.5 PN

With Shift Interlock

5 C2012 0.3 PW B104 Column Switch Illumination

0.3 PS 1 C2012

0.5 PW

0.5 PW

20 C202

0.5 PU

P

J1-15
