Interior lamps – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Interior lamps – circuit diagram

Interior lampsInterior lamps – circuit diagram

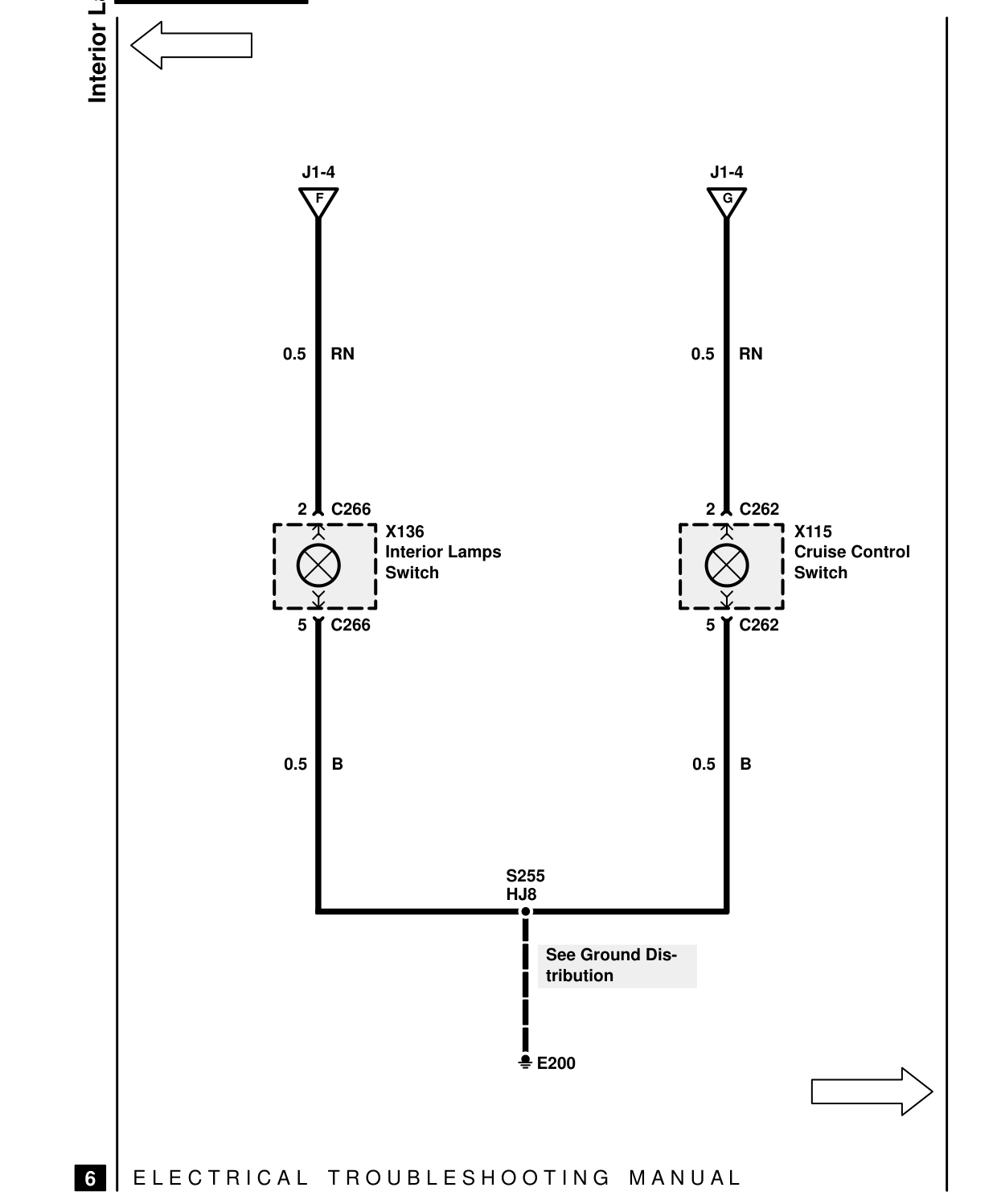

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps

J1-4 F

0.5 RN

2 C266 X136 Interior Lamps Switch

5 C266

0.5 B

E L E C T R I C A L T R O U B L E S H O O T I N G

6

J1-4 G

0.5 RN

2 C262 X115 Cruise Control Switch

5 C262

0.5 B

S255 HJ8

See Ground Dis- tribution

E200

M A N U A L

28 Body & interior
