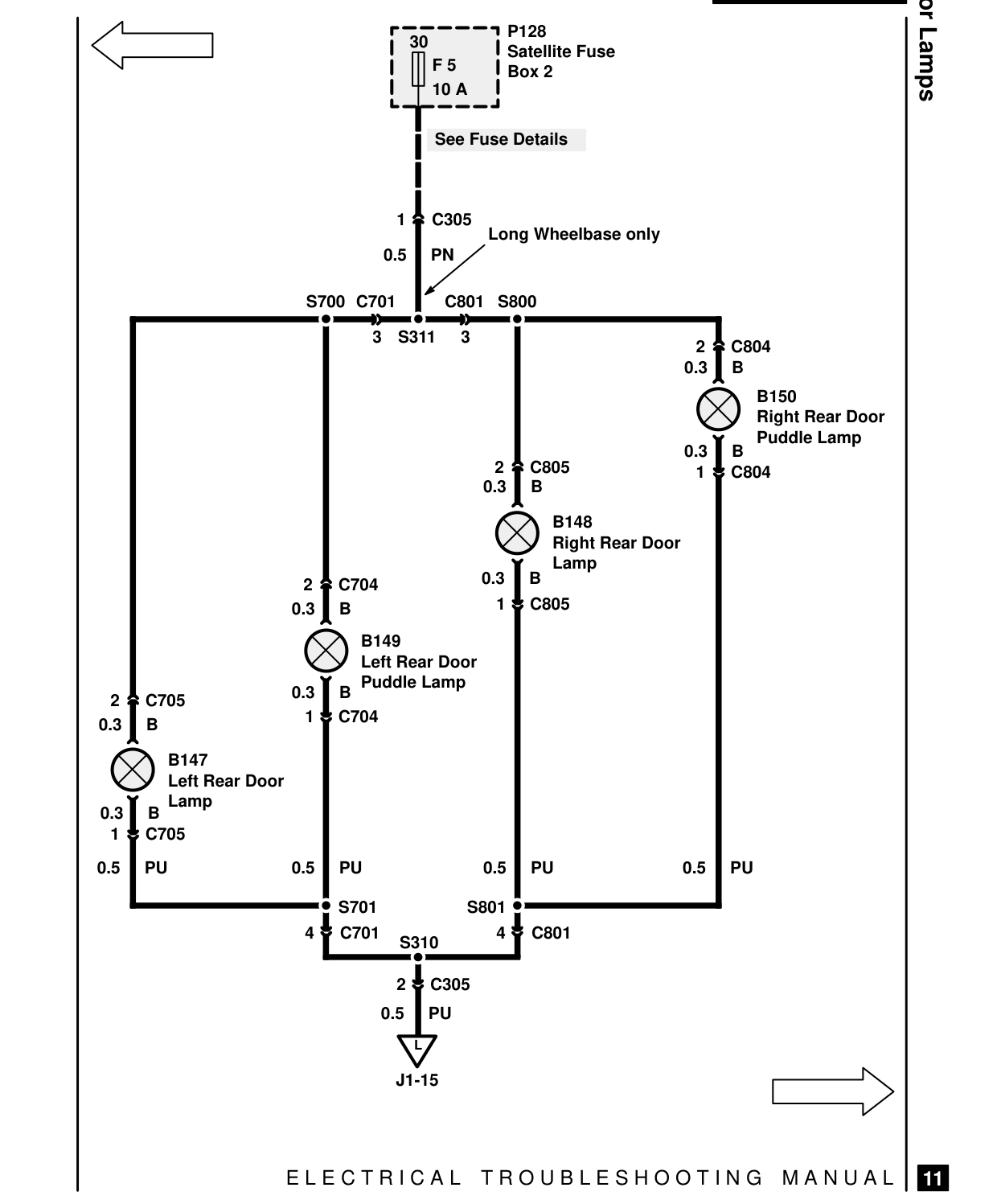

Interior lamps – circuit diagram

INTERIOR LAMPS – CIRCUIT DIAGRAM

30 F 5 10 A

See Fuse Details

1 C305

0.5 PN

S700 C701 C801

3 3 S311

2 C704 0.3 B B149 Left Rear Door Puddle Lamp 0.3 B 2 C705 1 C704 0.3 B

B147 Left Rear Door Lamp 0.3 B 1 C705

0.5 PU 0.5 PU

S701 S801 4 C701 S310

2 C305 0.5 PU

L

J1-15

E L E C T R I C A L

Interior Lamps P128 Satellite Fuse Box 2

Long Wheelbase only

S800

2 C804 0.3 B B150 Right Rear Door Puddle Lamp 0.3 B 2 C805 1 C804 0.3 B

B148 Right Rear Door Lamp 0.3 B 1 C805

0.5 PU 0.5 PU

4 C801

T R O U B L E S H O O T I N G M A N U A L

11
