Interior lamps – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Interior lamps – circuit diagram

Interior lampsInterior lamps – circuit diagram

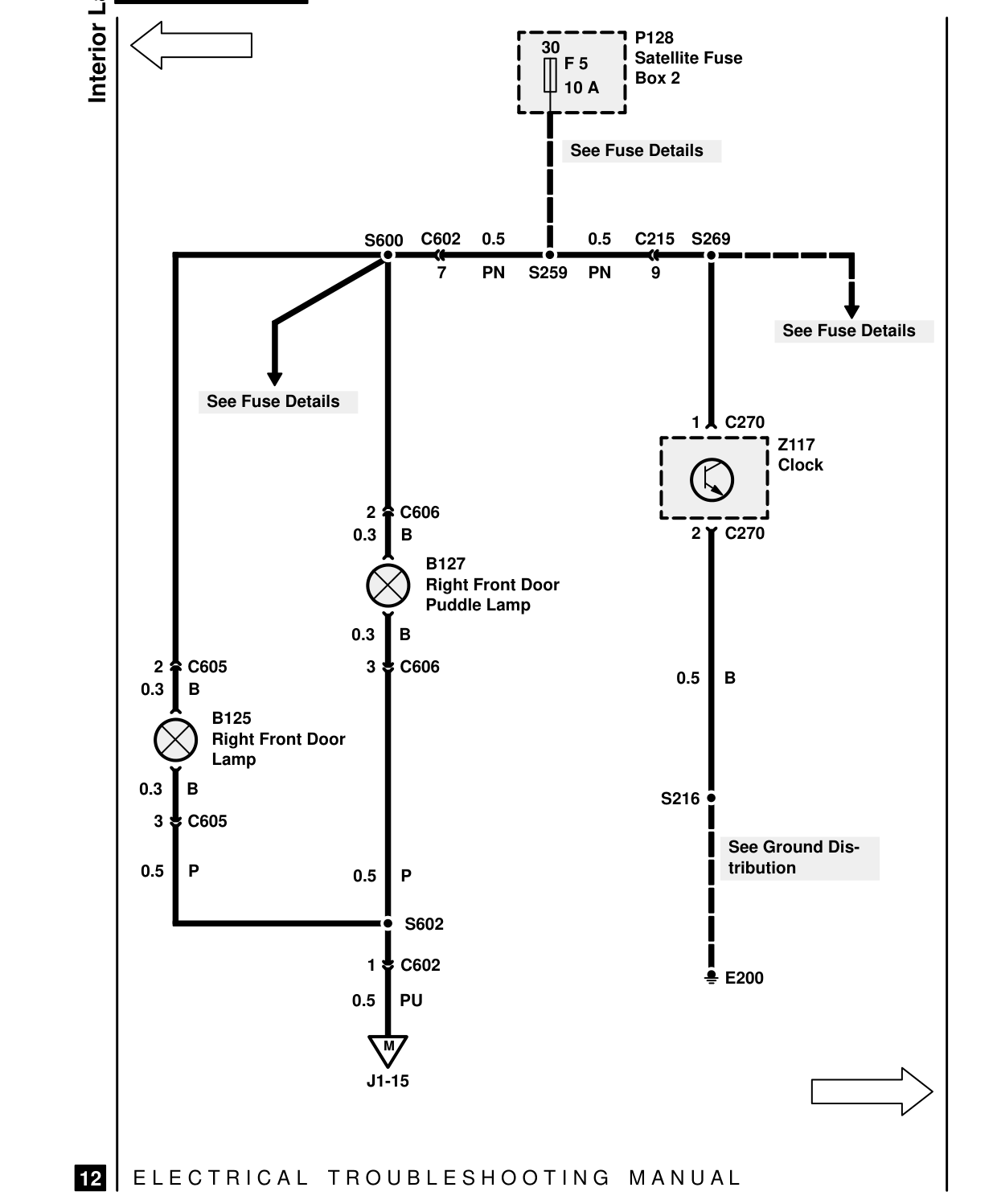

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps

C602 S600 7

See Fuse Details

2 C606 0.3 B B127 Right Front Door Puddle Lamp 0.3 B 2 C605 3 C606 0.3 B B125 Right Front Door Lamp 0.3 B 3 C605

0.5 P 0.5 P

S602

1 C602

0.5 PU

M

J1-15
