Interior lamps – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Interior lamps – circuit diagram

Interior lampsInterior lamps – circuit diagram

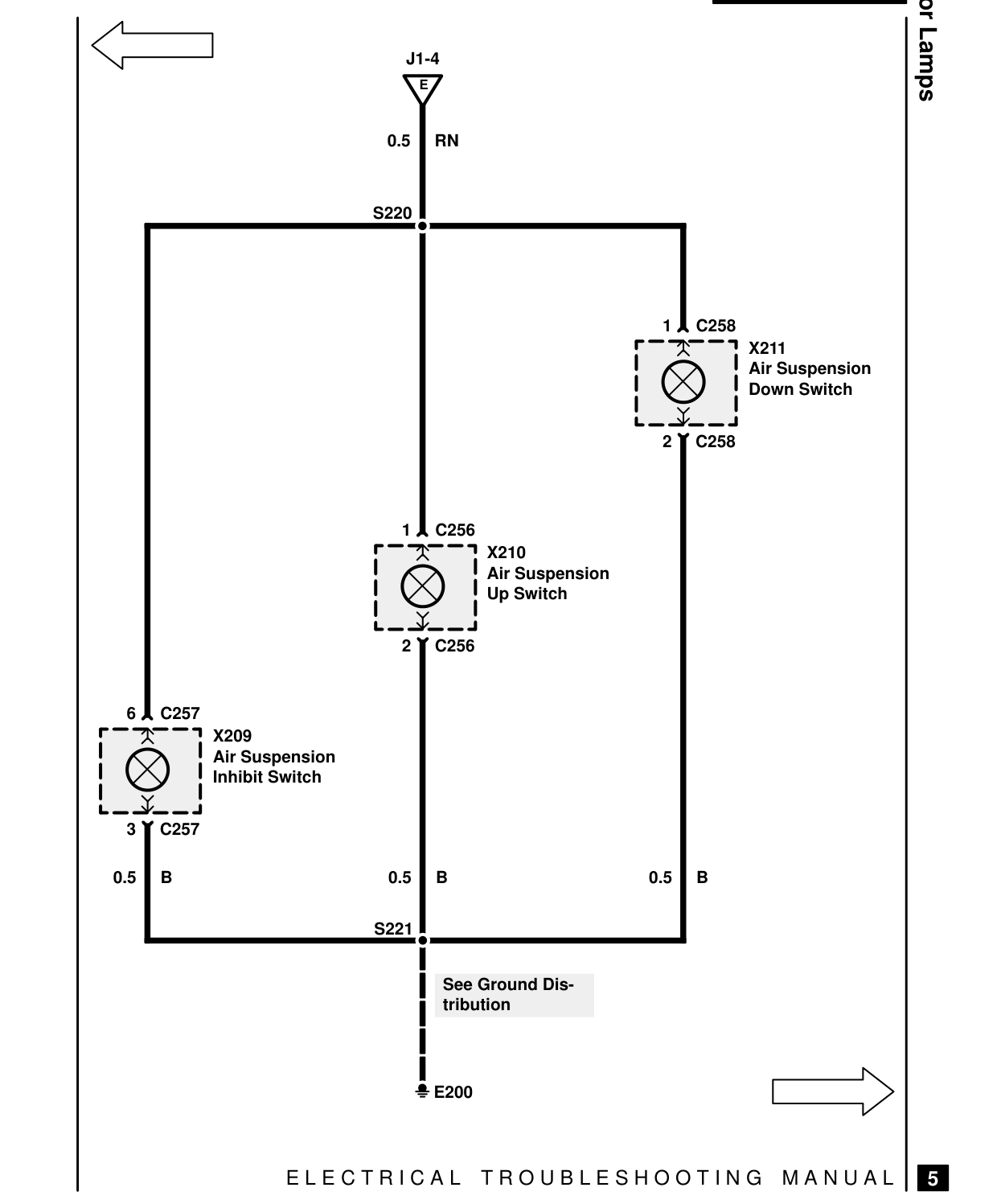

INTERIOR LAMPS – CIRCUIT DIAGRAM

J1-4 E

0.5 RN

S220

1 C256

2 C256

6 C257 X209 Air Suspension Inhibit Switch

3 C257

0.5 B 0.5 B

S221

See Ground Dis- tribution

E200

E L E C T R I C A L

Interior Lamps

1 C258 X211 Air Suspension Down Switch

2 C258

X210 Air Suspension Up Switch

0.5 B

T R O U B L E S H O O T I N G M A N U A L
