Power distribution – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Power distribution – circuit diagram

Power distributionPower distribution – circuit diagram

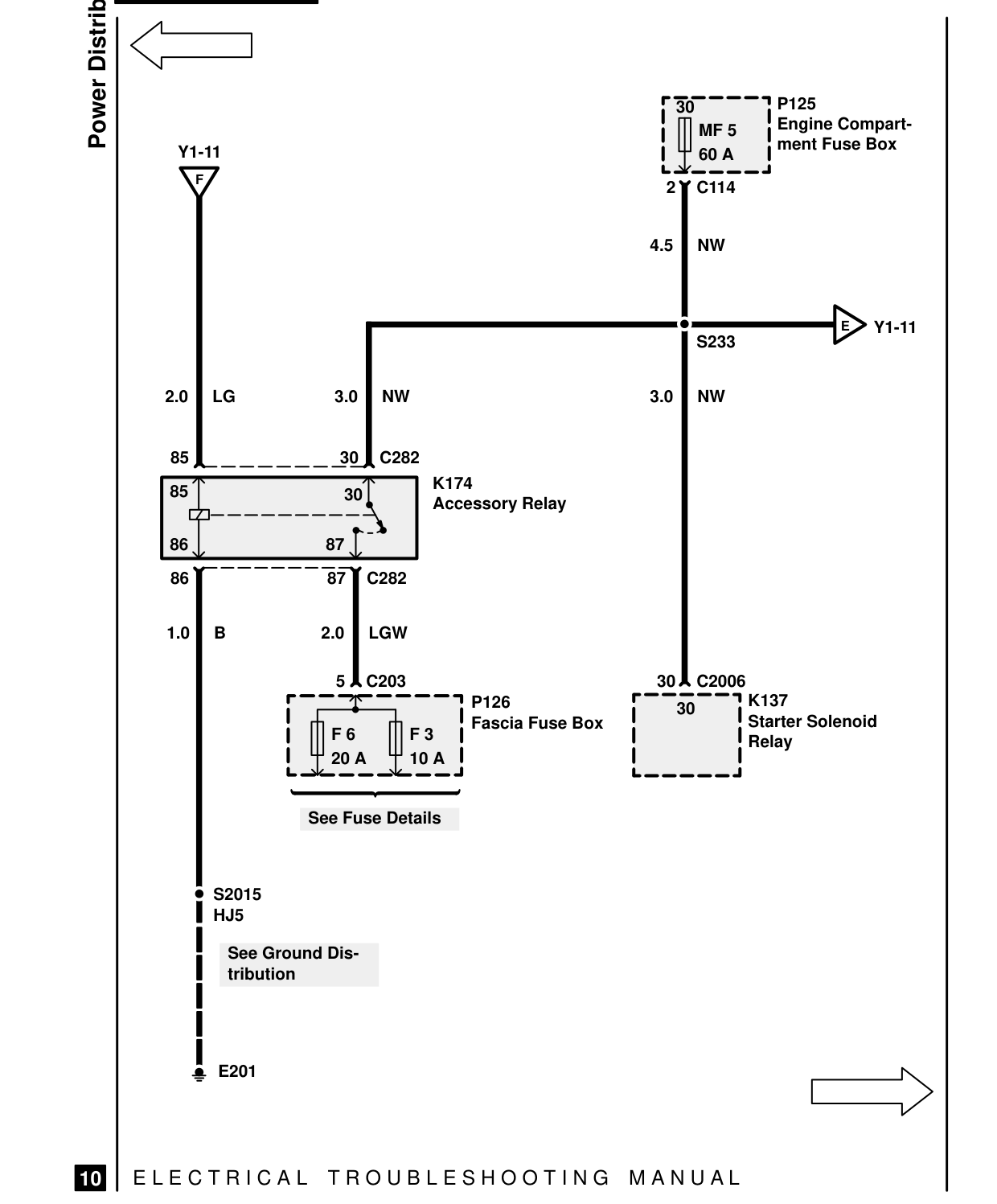

POWER DISTRIBUTION – CIRCUIT DIAGRAM

Power Distribution Y1-11 F

3.0 NW 2.0 LG

30 C282 85 K174 85 30 Accessory Relay

86 87

86 87 C282

2.0 LGW 1.0 B

5 C203

F 6 F 3 20 A 10 A

See Fuse Details

S2015 HJ5

See Ground Dis- tribution

E201

E L E C T R I C A L T R O U B L E S H O O T I N G

10

P125 30 Engine Compart- MF 5 ment Fuse Box 60 A 2 C114

4.5 NW

Y1-11 E S233

3.0 NW

30 C2006 K137 P126 30 Starter Solenoid Fascia Fuse Box Relay

M A N U A L

46 General
