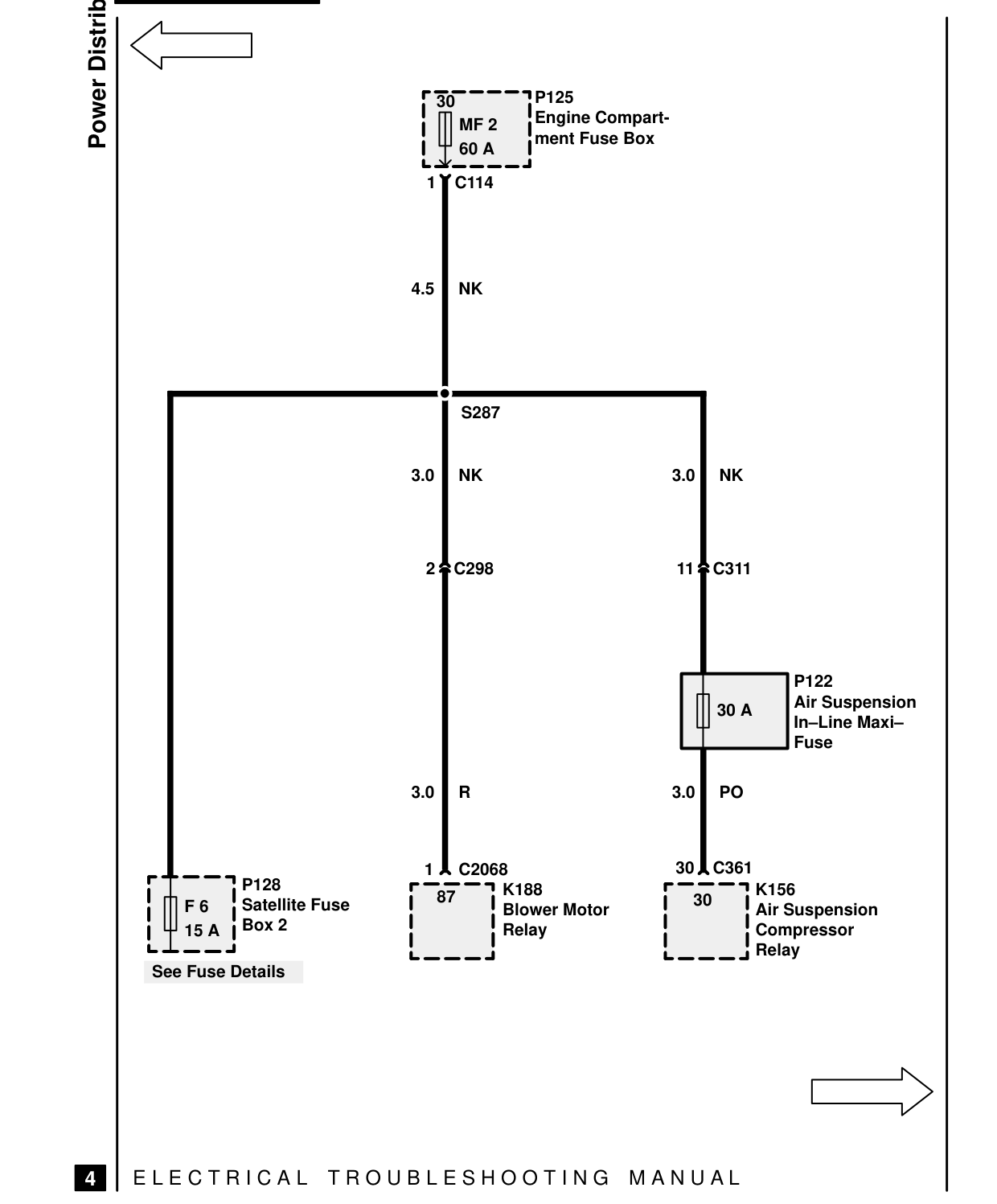

POWER DISTRIBUTION – CIRCUIT DIAGRAM

Power Distribution 30

1 C114

4.5

3.0

2 C298

3.0

1 P128 87 Satellite Fuse F 6 Box 2 15 A

See Fuse Details

E L E C T R I C A L T R O U B L E S H O O T I N G

4

P125 Engine Compart- MF 2 ment Fuse Box 60 A

NK

S287

NK 3.0 NK

11 C311

P122 Air Suspension 30 A In-Line Maxi- Fuse

R 3.0 PO

30 C361 C2068 K188 K156 30 Blower Motor Air Suspension Relay Compressor Relay
