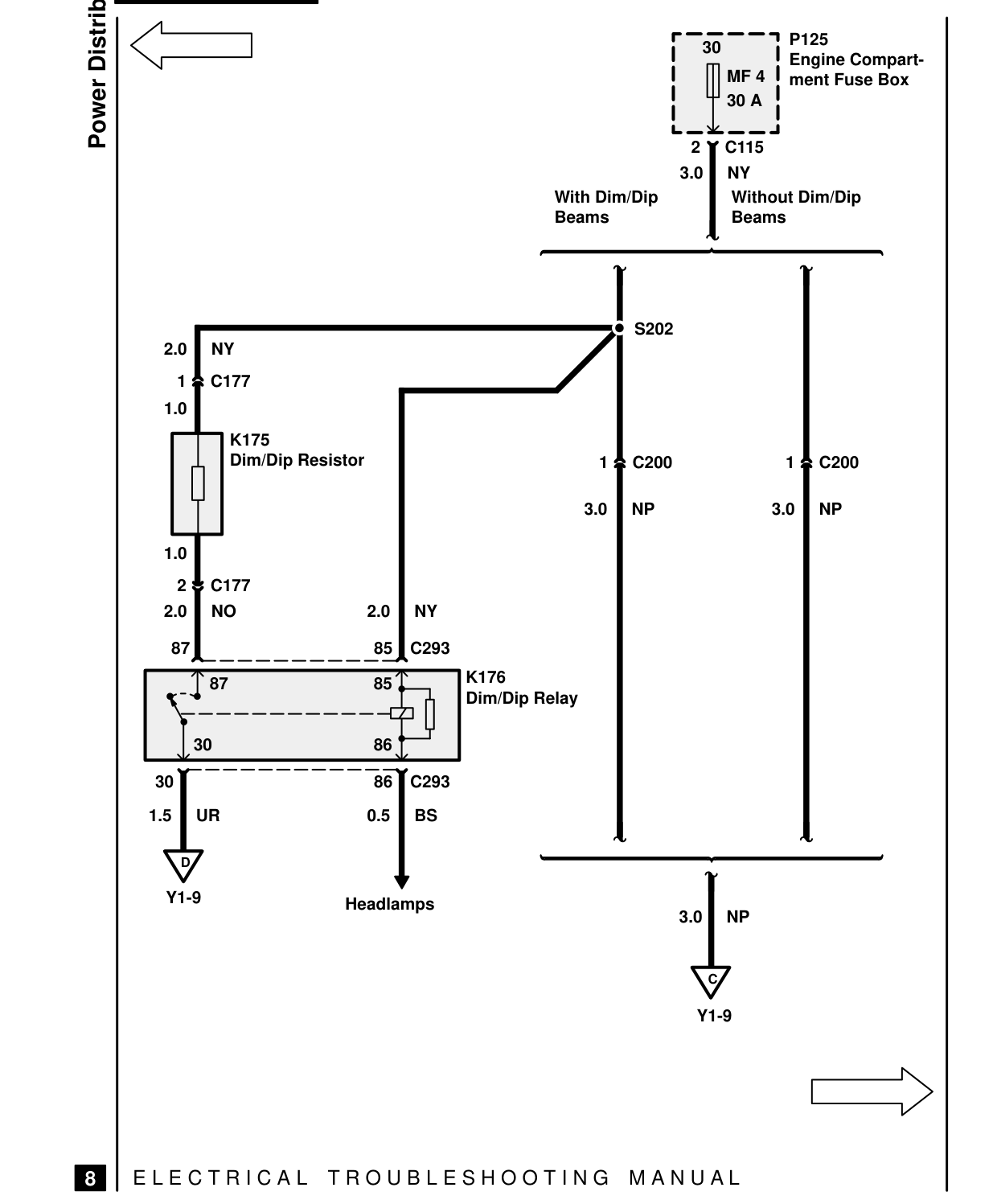

POWER DISTRIBUTION – CIRCUIT DIAGRAM

Power Distribution

2.0 NY 1 C177 1.0 K175 Dim/Dip Resistor

1.0 2 C177 2.0 NO 2.0 NY

87 85 C293

87 85

30 86

30 86 C293

1.5 UR 0.5 BS

D

Y1-9 Headlamps

E L E C T R I C A L T R O U B L E S H O O T I N G

8

P125 30 Engine Compart- MF 4 ment Fuse Box 30 A

2 C115 3.0 NY With Dim/Dip Without Dim/Dip Beams Beams

S202

1 C200 1 C200

3.0 NP 3.0 NP

K176 Dim/Dip Relay

3.0 NP

C

Y1-9

M A N U A L

46 General
